SS-6 MKII Switchable Input Stereo DI

605 AUD
Local Duties Not Included We don’t charge VAT—your country might. See our policy for details.

Stop re-patching. Keep playing.

Six stereo inputs, one knob, zero friction between you and your next idea. The SS-6 MKII keeps your entire collection patched and ready to play—just turn the dial and find the sound you're looking for. No cables, no momentum lost, no reason to stick to the same couple of instruments while the rest collect dust. With pristine, transformer-balanced DIs and zero power required, we've removed the obstacles—creative flow is waiting.

Six stereo inputs, always ready

Passive, transformer-balanced DIs

Thru outputs for parallel routing

Desktop friendly

Connections

Stereo Ins
Up to 6 stereo or 12 mono sources like synths, keyboards, drum machines, guitars and basses.

XLR Outs
Stereo DI balanced XLR outputs for sending to your audio interface or preferred mic preamp chain.

Thrus
Untouched copies of your original input signals for use in parrallel processing, monitoring or sending to amps.

10-Year Warranty

We don't make anything that wouldn't be proud to have in our own studios, and we back our products 100%. That's why the SS-6 comes with a 10 year warranty.

Manual

SS-6 User Guide v1.1

More details

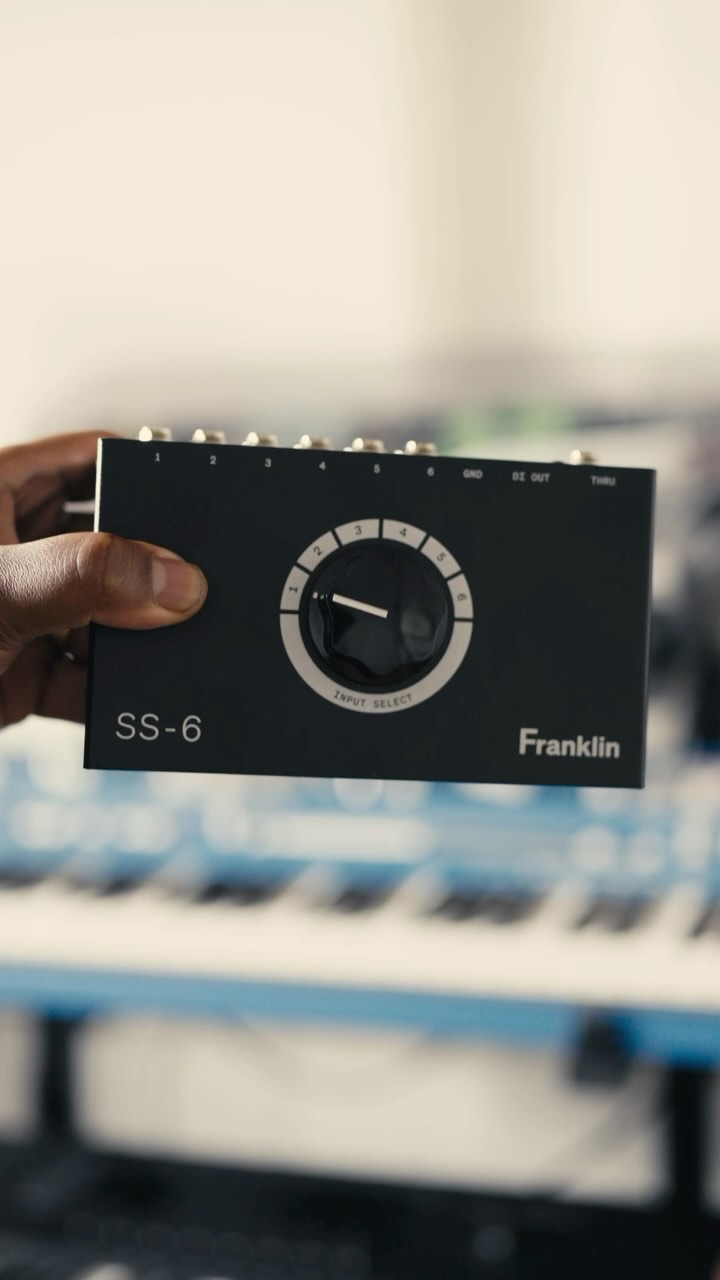

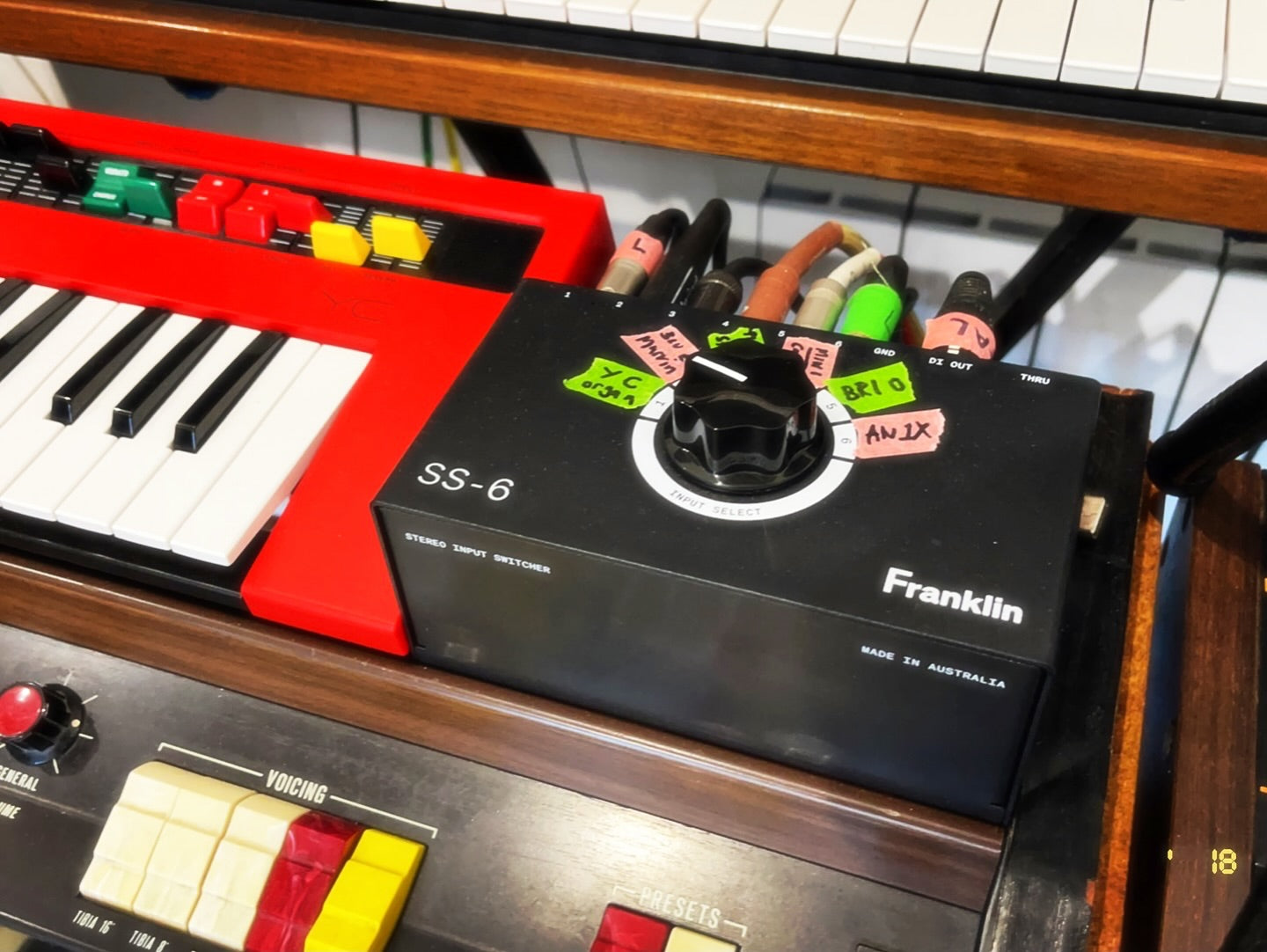

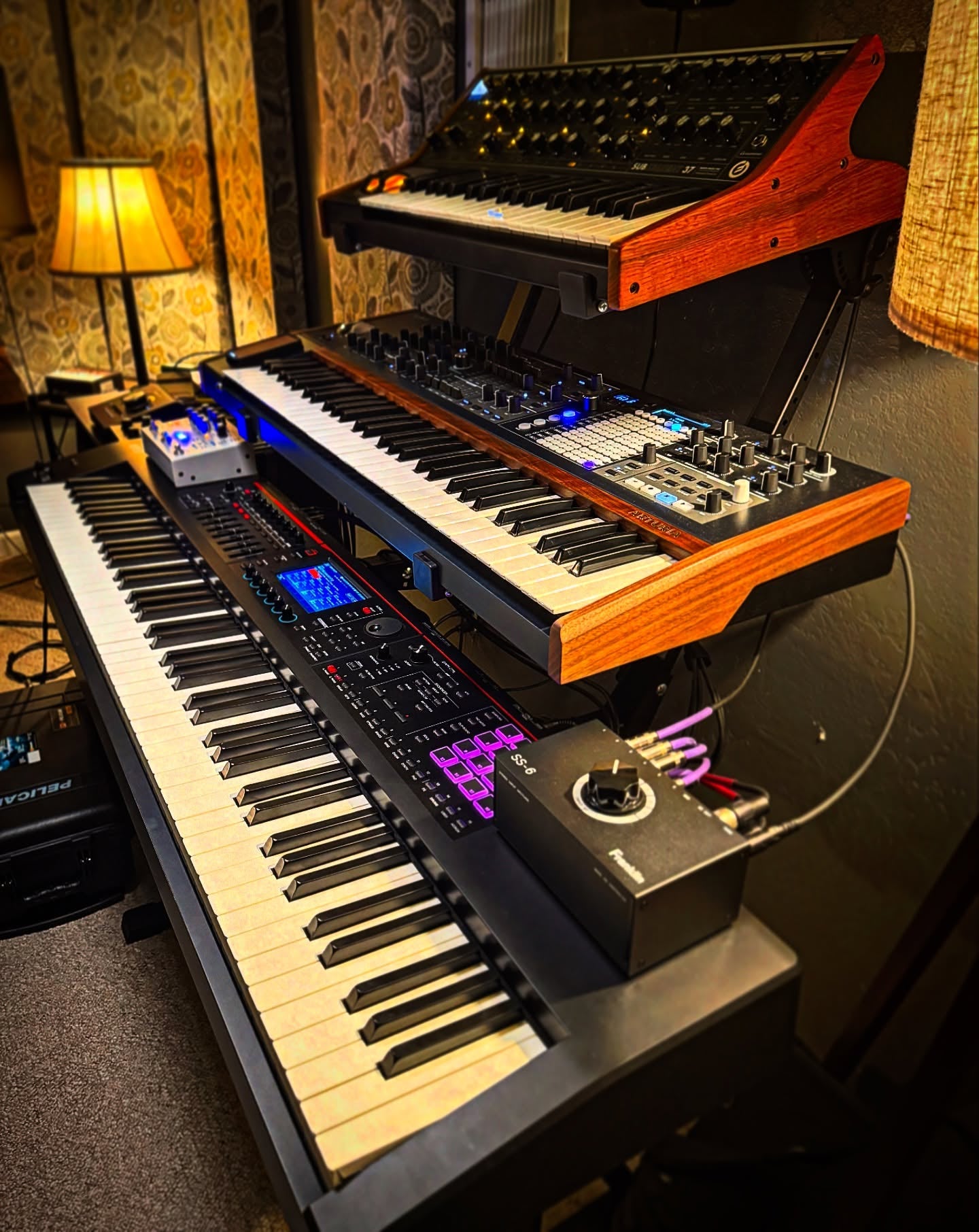

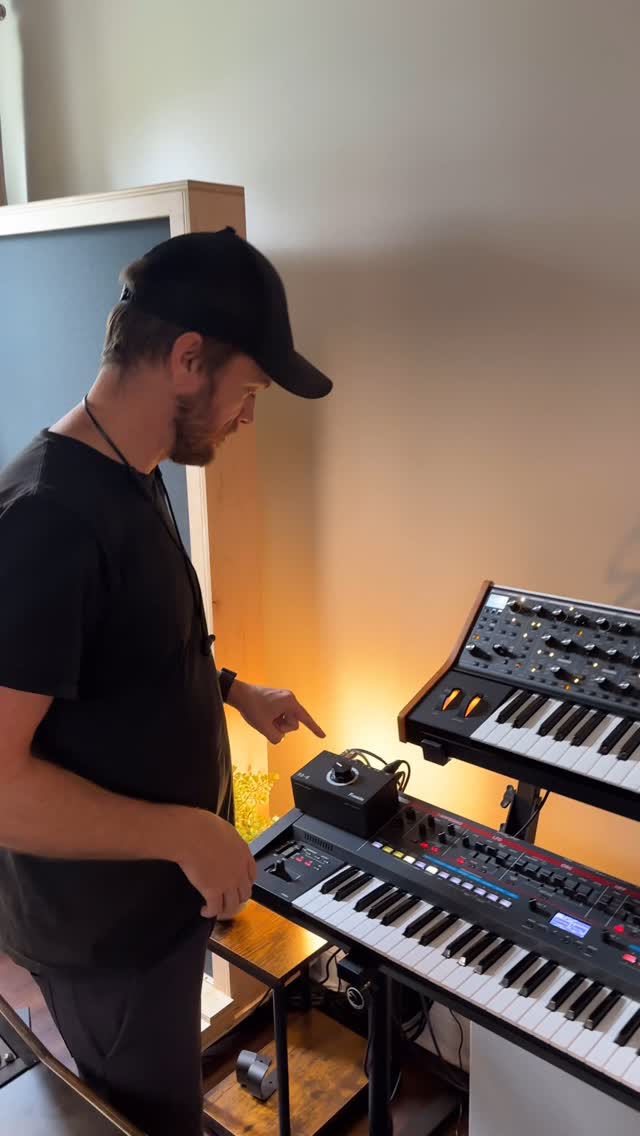

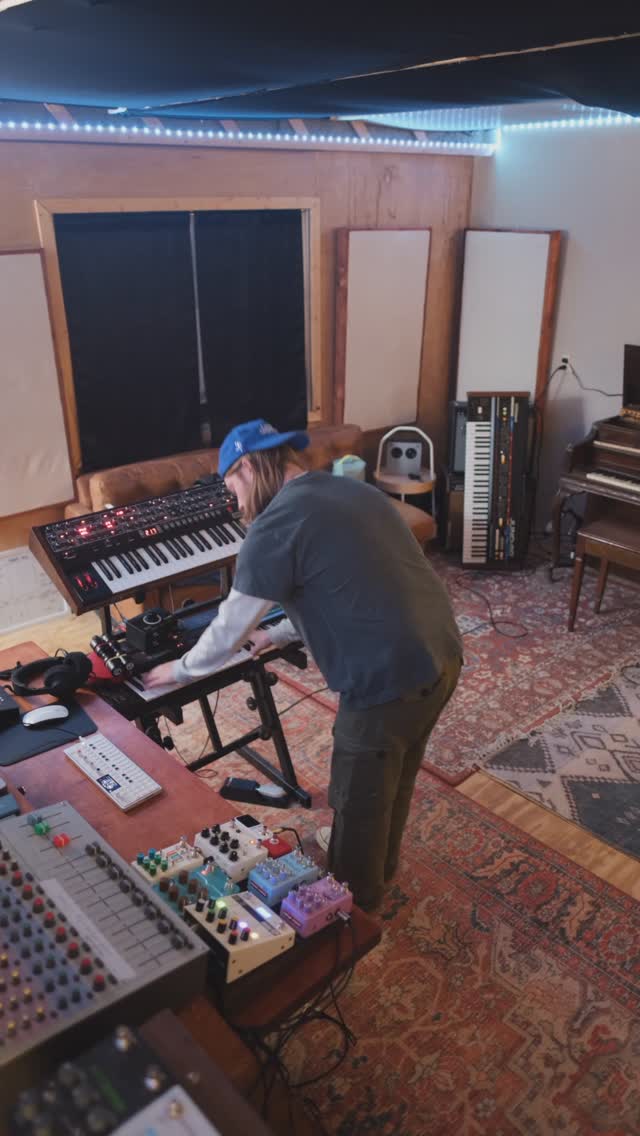

In The Wild

ASSEMBLE THE GANG

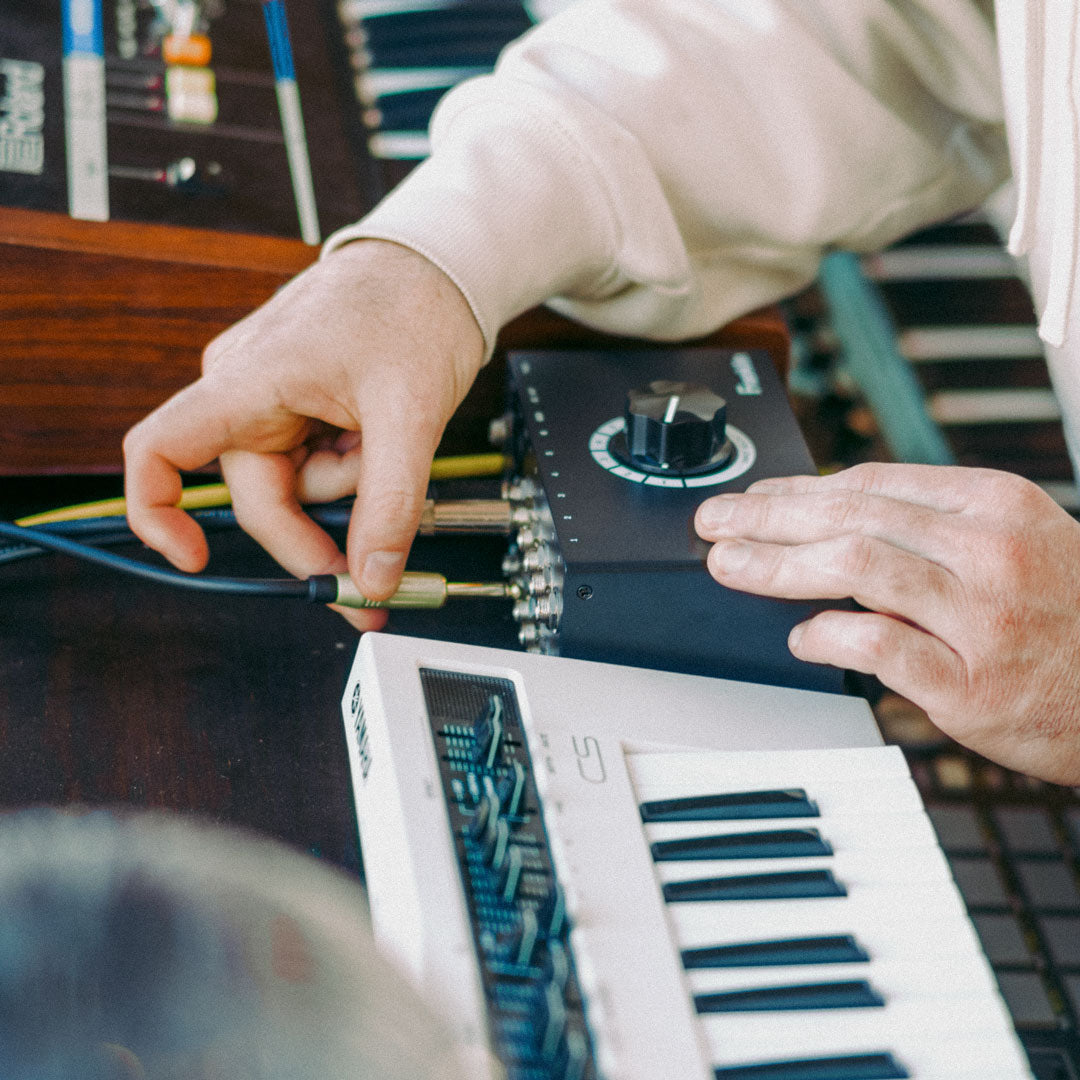

Connect your instruments to the rear inputs. Go full stereo or expand your palette with up to 12 mono sources.

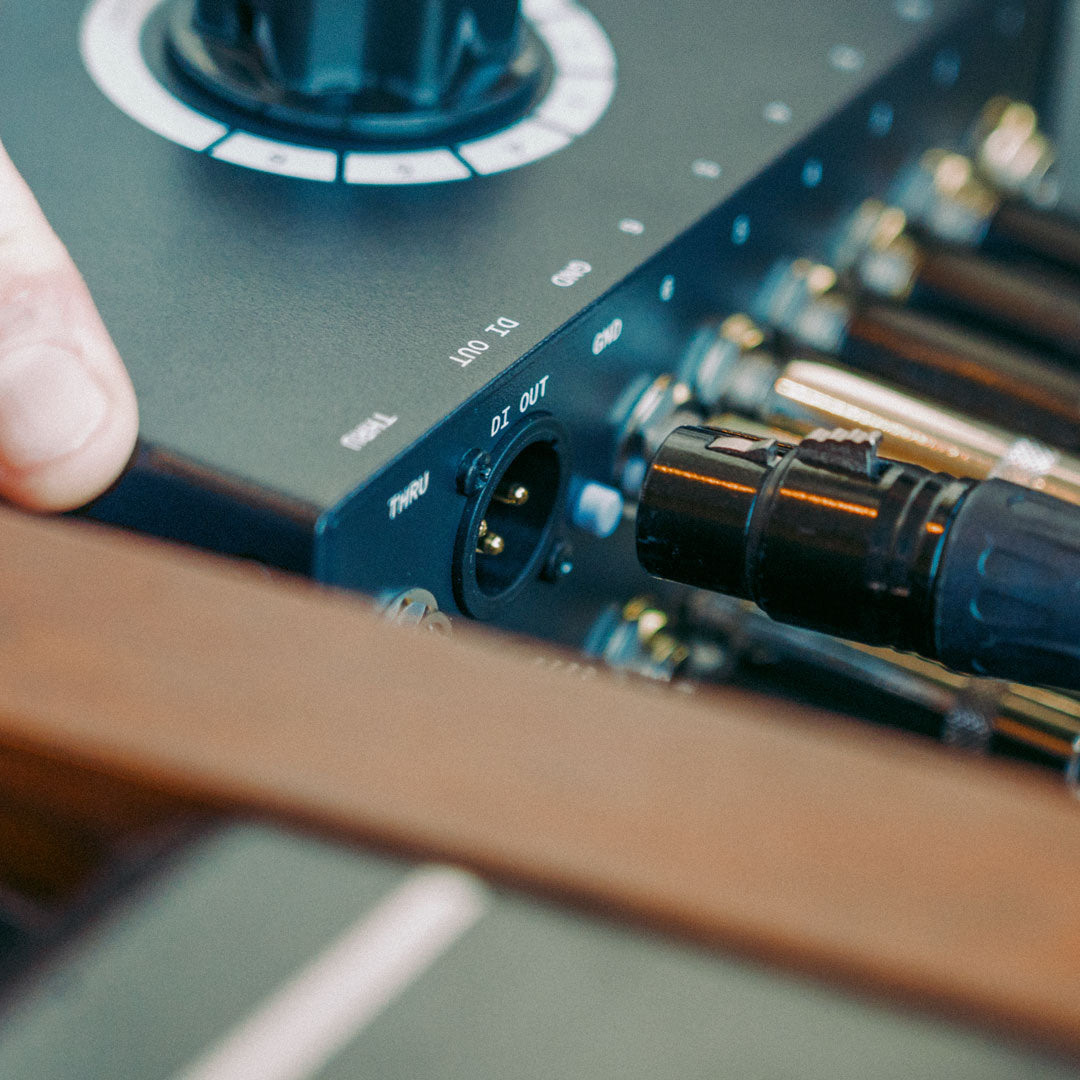

Clean Capture

Run the balaned DI outputs to your recording interface, mic preamp or desk. Transformer-balanced outputs means clean, isolated audio with plenty of headroom and no colouration.

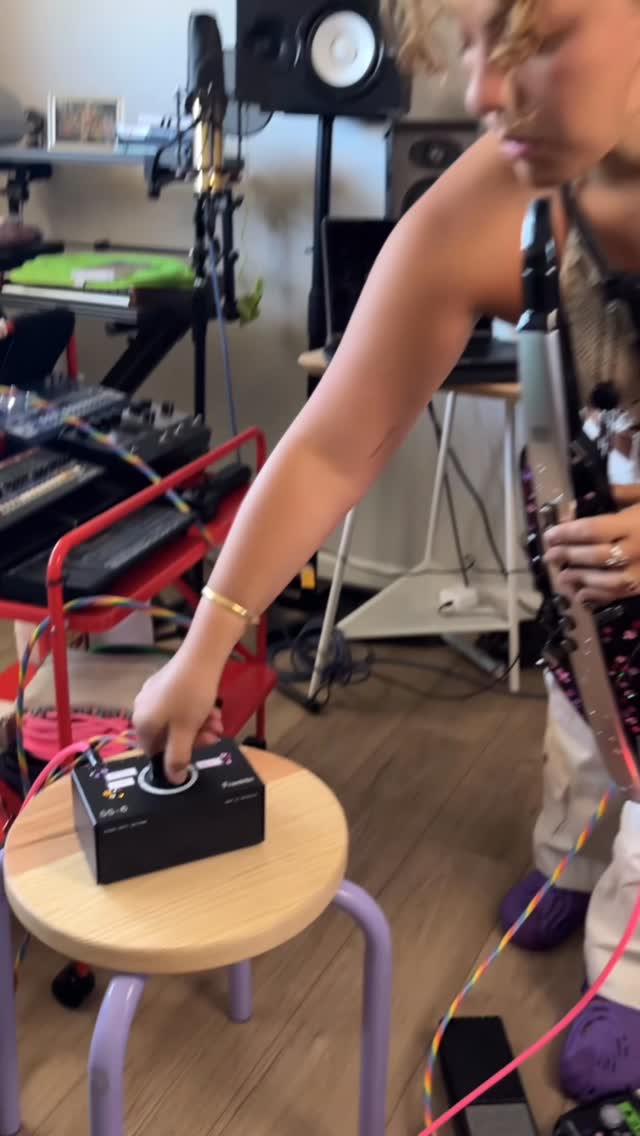

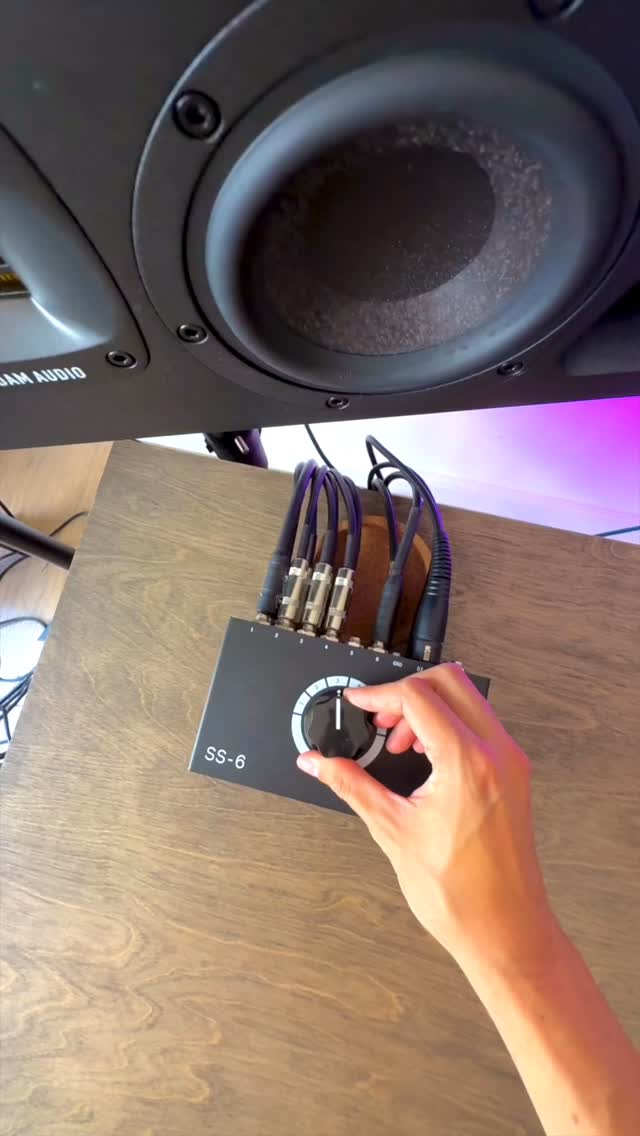

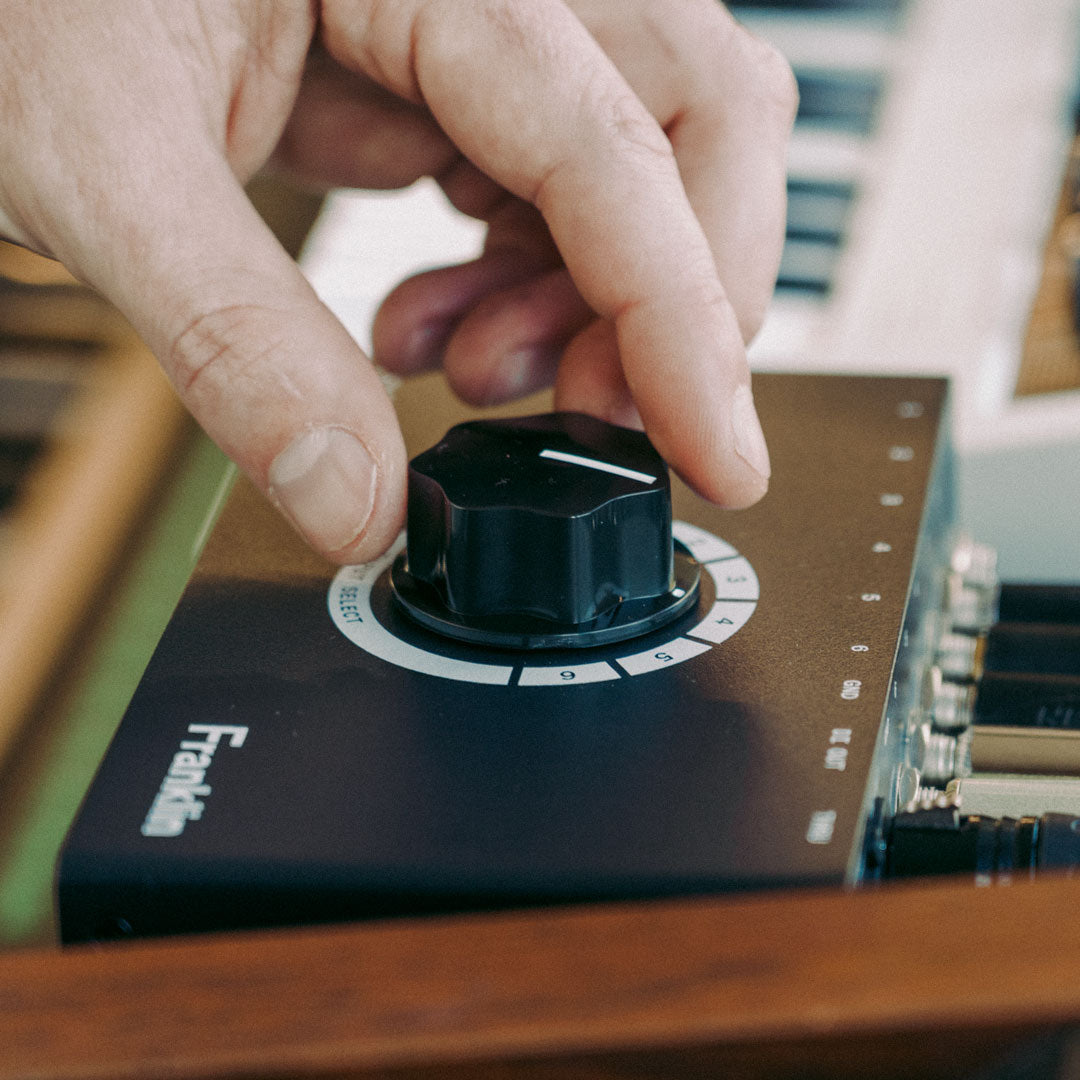

Flick the switch

Simply turn the dial to hear the instrument you want to use next. Passive switching is instant and silent—no pops, no clicks, no momentum lost.

Super Useful

We believe great gear should be easy to use—no technical barriers, no learning curve, just music-making. We've thought deeply about every aspect of the SS-6's design so that you can focus on creating, no matter your experience level.

User-friendly design

Simple controls and clear indicators means less time learning and more time creating.

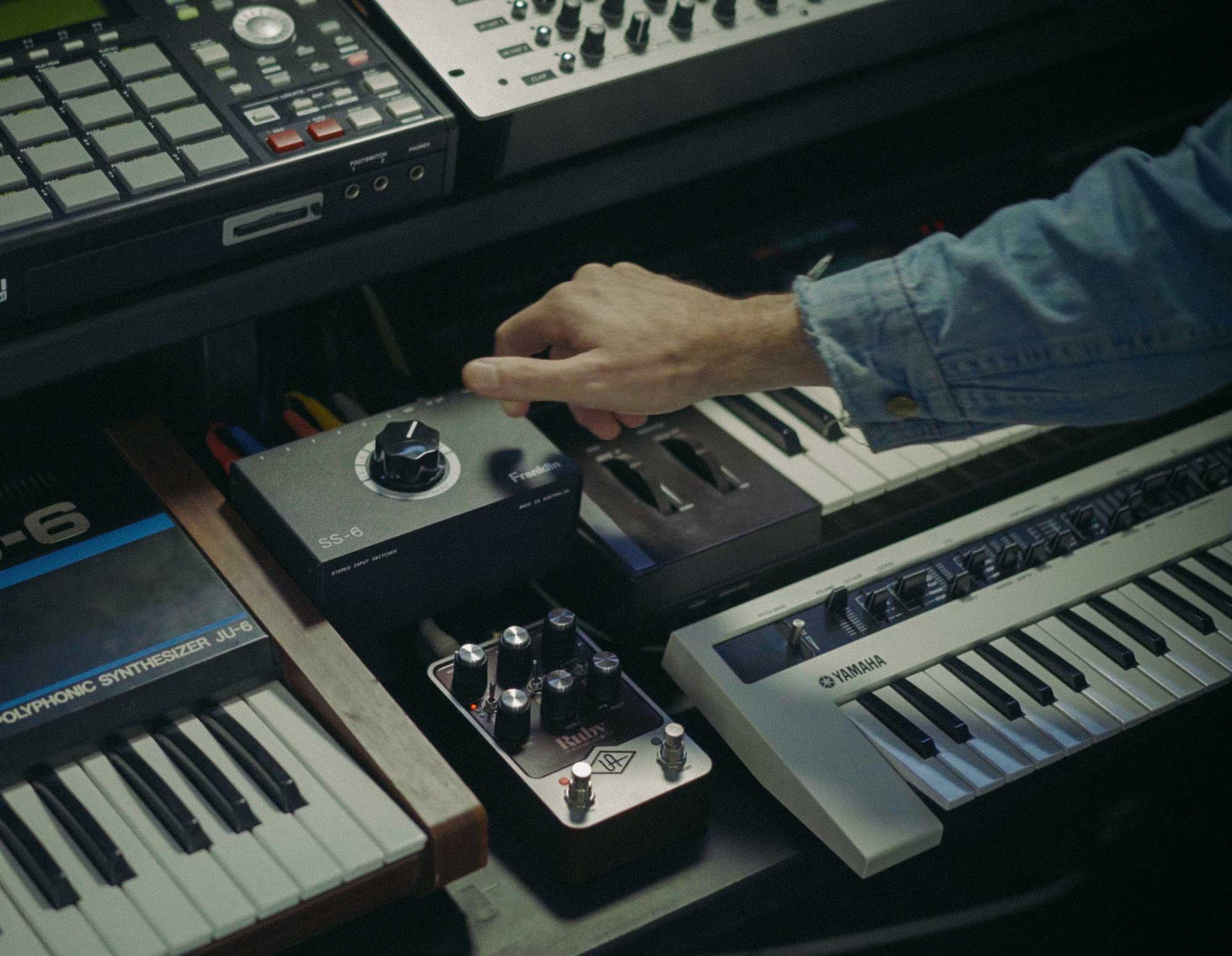

Desktop-friendly

We've packed the design into a compact form designed specifically to sit on your desk, your side table or even the top of your keyboard.

100% analogue

We make our gear using analogue circuitry with zero digital components—built for reliability, longevity, and easy repair if you ever need it.

No power needed

The SS-6 has a fully passive design, so you don't have to worry about freeing up an outlet.

Built like a tank

...with heavy duty 1.5mm folded steel enclosure. Your studio deserves gear that won't let you down.

Specs & Features

Inputs

6 x Stereo / 12 x Mono TS Jacks

Outputs

Stereo Balanced XLR + Stereo Through TS Jacks

Circuitry

Passive with custom-wound Franklin Audio transformers

Construction

Heavy duty 1.5mm folded steel enclosure

Origin

Designed and hand made in Sydney, Australia

Technical Specs

Frequency response

10Hz-40kHz +/-1dB
Title

Signal to noise ratio

>90dB
Title

THD

<0.001%
Title

DI circuit attenuation

20dB
Title

Weight

1.25kg / 2.75lb
Title

Dimensions

L: 165mm D: 100mm H: 92mm

Manual

SS-6 User Guide v1.1

FAQs

Can I hear all of the inputs simultaneously?

No—the SS-6 is a switcher, not a mixer. You’ll hear one stereo input at a time, routed to both the DI and thru outputs.

What transformers are in the DI circuit?

We use a custom-wound transformer we developed in collaboration with our factory partners. It’s flat, quiet, and tuned for clarity and headroom.

What are the "through" connectors?

Thru connectors tap your input signal before it hits the DI. Use them to send to amps, FX, or tuners without interrupting your main signal path.

Why not just use a mixer instead?

A mixer and a DI box serve very different roles. The SS-6 is designed to get the cleanest possible signal from your synths, drum machines, or instruments into your recording chain—especially if you’re using mic preamps for colour or clarity.



Mixers add active circuitry, EQ stages, and a gain structure that can introduce noise or colouration. The SS-6 has none of that. It’s a direct, transformer-balanced, passive path.



If you want to record one instrument at a time with the best signal chain possible, and you want to avoid constantly repatching or crawling under desks, the SS-6 is the better tool.

What is a DI box?

A DI (Direct Inject) box takes instrument-level signals—like those from synths, drum machines, samplers, or guitars—and converts them to mic-level signals that play nice with your preamps and interfaces.



It also balances the signal, which helps you run long cables without picking up hum or interference. That means quieter recordings and tighter integration with pro-level gear.



The SS-6 adds transformer isolation, so you get clean, low-noise tone with no ground loops and no surprises in your signal path.

The signal level on the DI outputs seems low?

Yes, that’s what a DI box does. The SS-6 outputs a passive, mic-level signal so it can properly interface with your preamps—just like any traditional DI.

Is there any noise or popping when switching inputs?

No. Switching is silent under normal use. If you ever hear popping, it’s likely DC offset from a misbehaving synth—not the SS-6.
