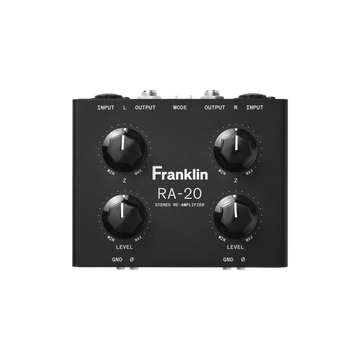

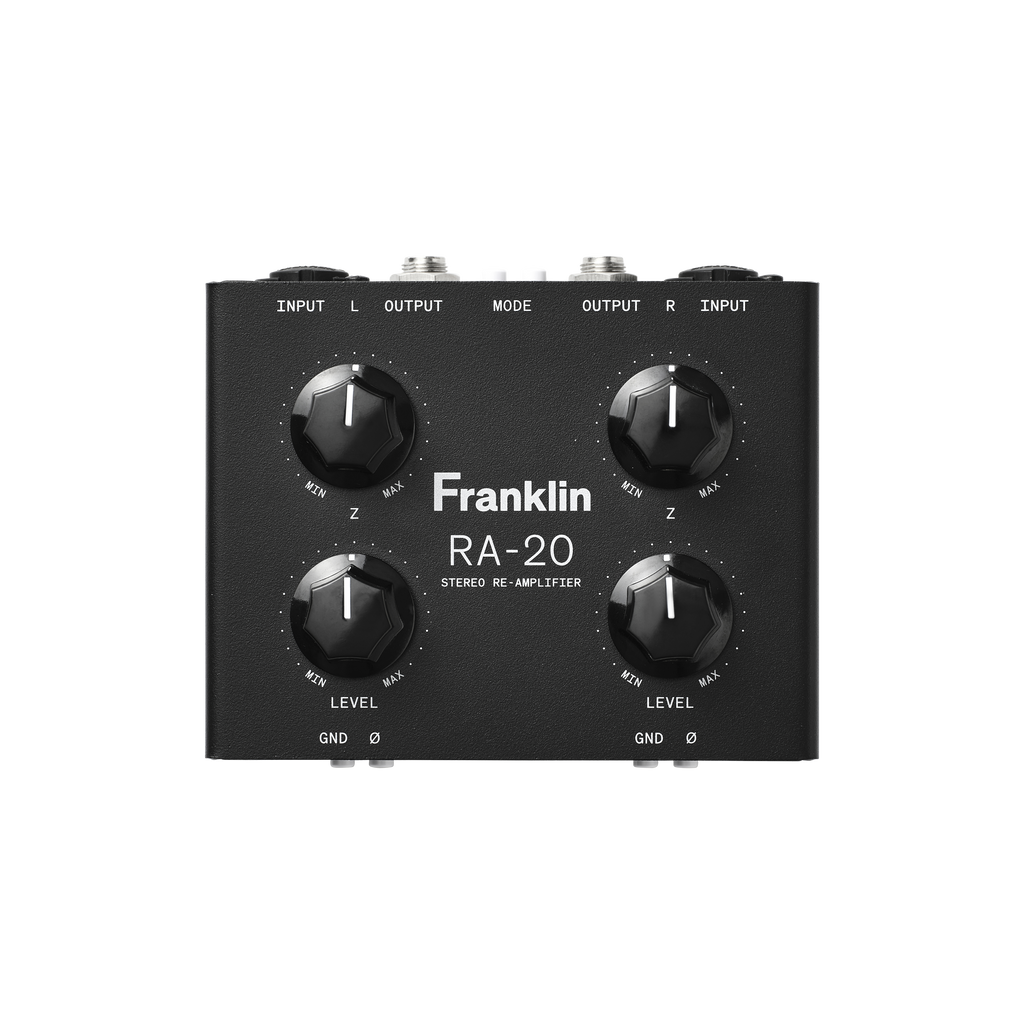

RA-20 Stereo Re-Amplifier

490 AUD

The best re-amp box ever.
Now in stereo.

Send drum overheads through your stereo pedal chain, route guitars to dual amps, or run two independent re-amp setups at once—the RA-20 handles it all with four switchable routing modes. Our signature variable impedance and high headroom design, now with the flexibility to work in stereo, dual mono, or split a mono source across two destinations. With transformer-balanced inputs, independent controls per channel, and no power required, we've built the most versatile passive re-amp box ever.

Use in true stereo, dual mono and more

Use your pedals like IRL plugins

Transformer balanced for massive headroom

Desktop friendly

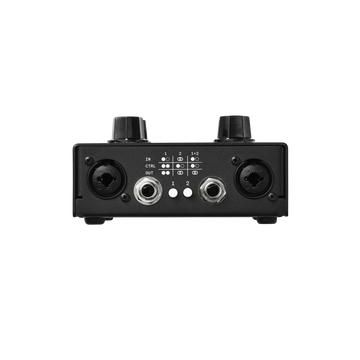

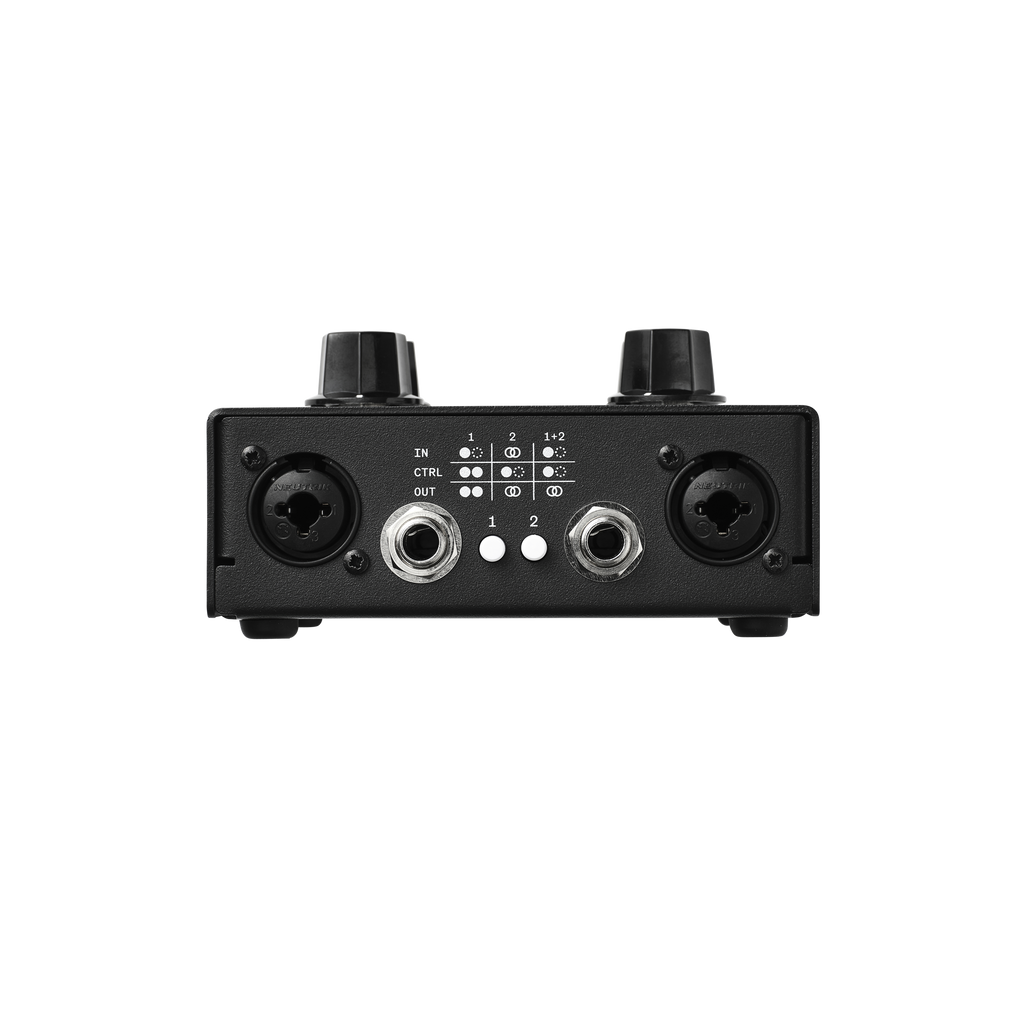

Connections

Line Level Inputs
2 x XLR/TRS inputs to receive any balanced mono or stereo audio from your audio interface or mixer.

Instrument Level Outputs
2 x Mono TS (i.e. guitar lead) jacks to send your re-amped audio to your pedal chain.

10 Year Warranty

Add the content to appear when the contenWe don't make anything that wouldn't be proud to have in our own studios, and we back our products 100%. That's why the RA-20 comes with a 10 year warranty.t is expanded

Manual

RA-20 User Guide v1.1

More details

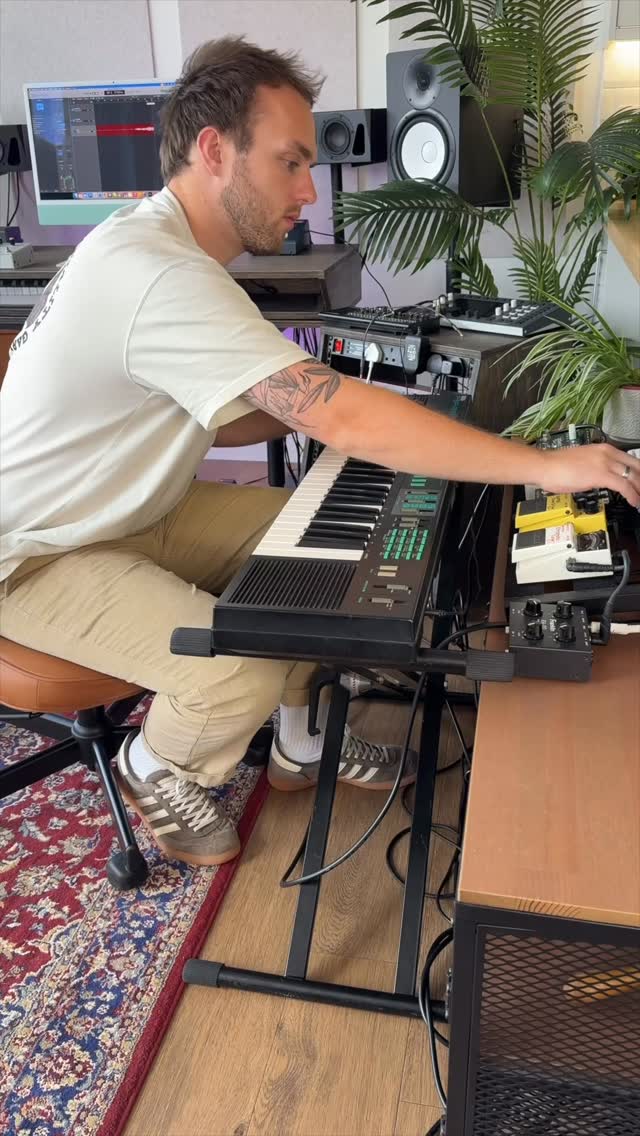

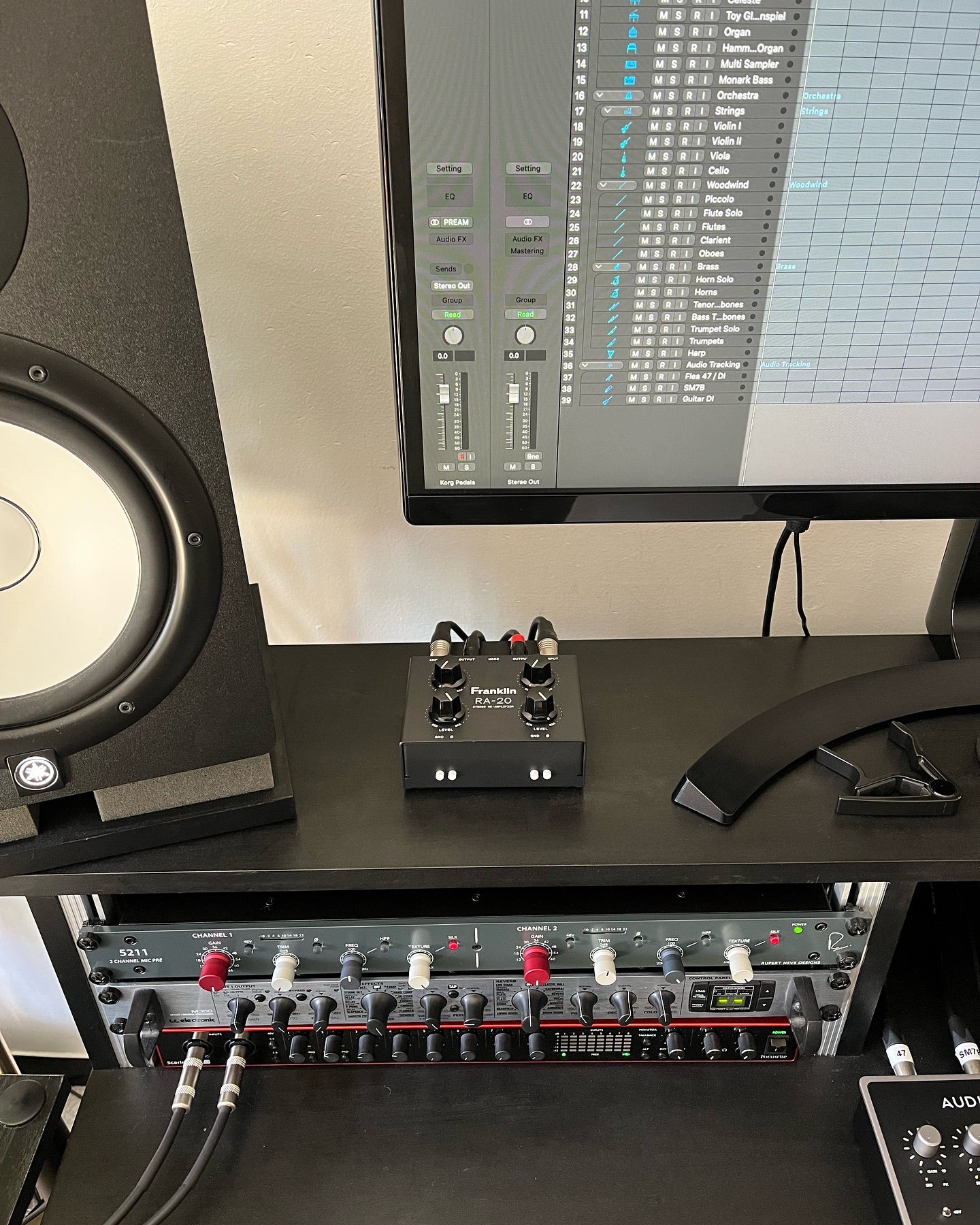

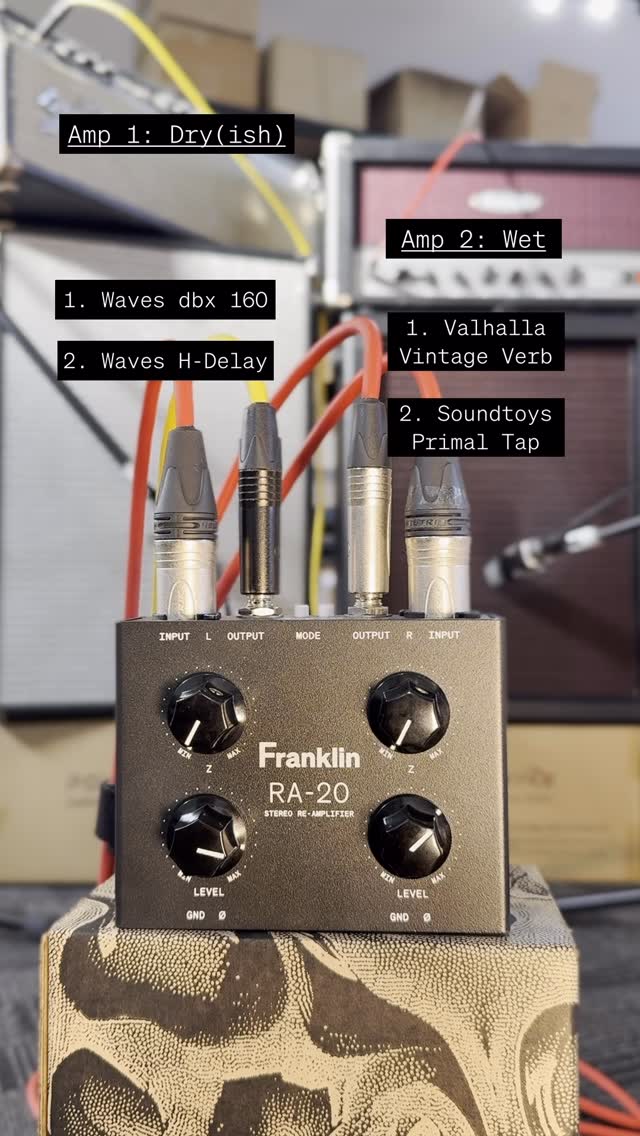

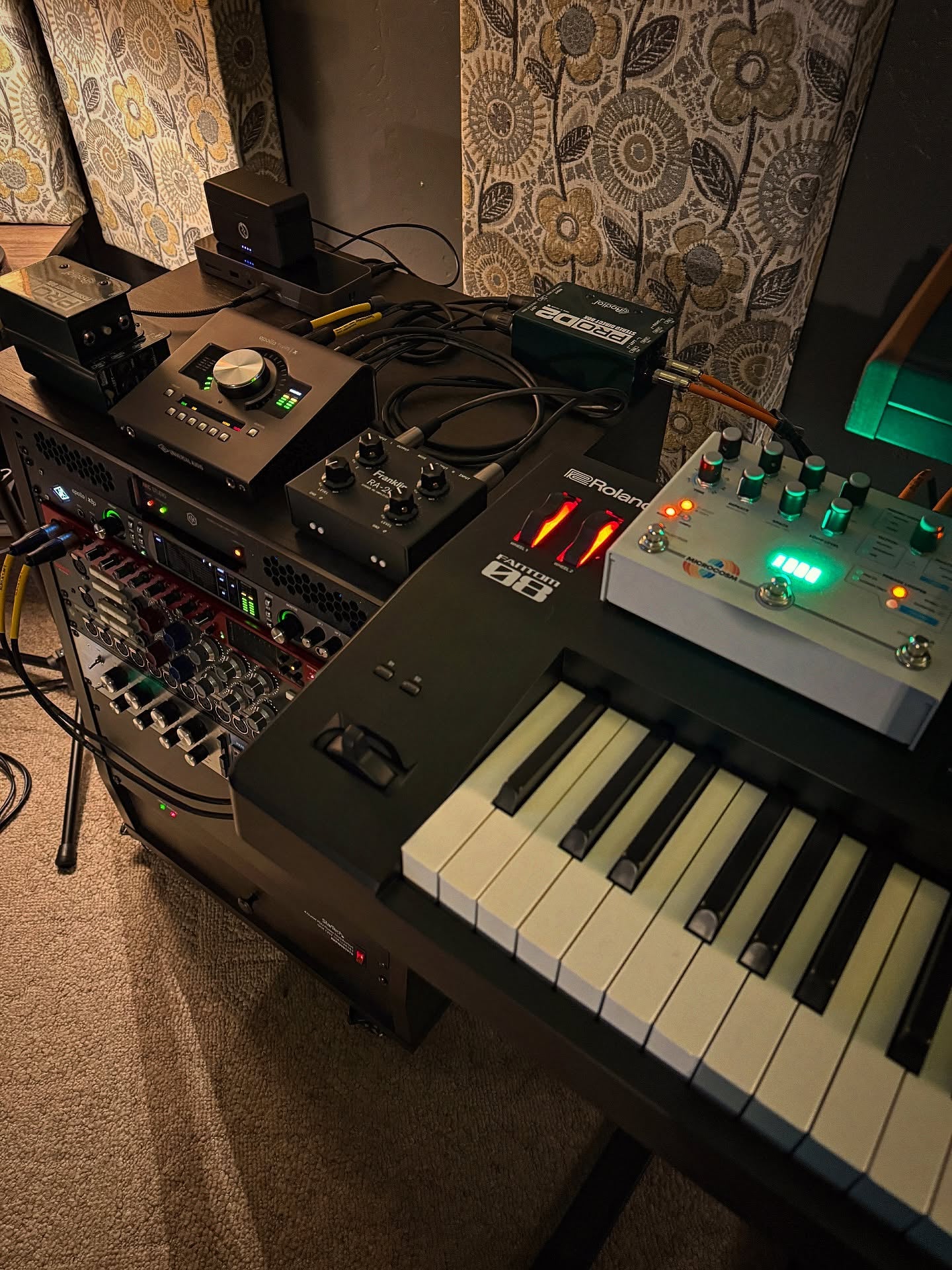

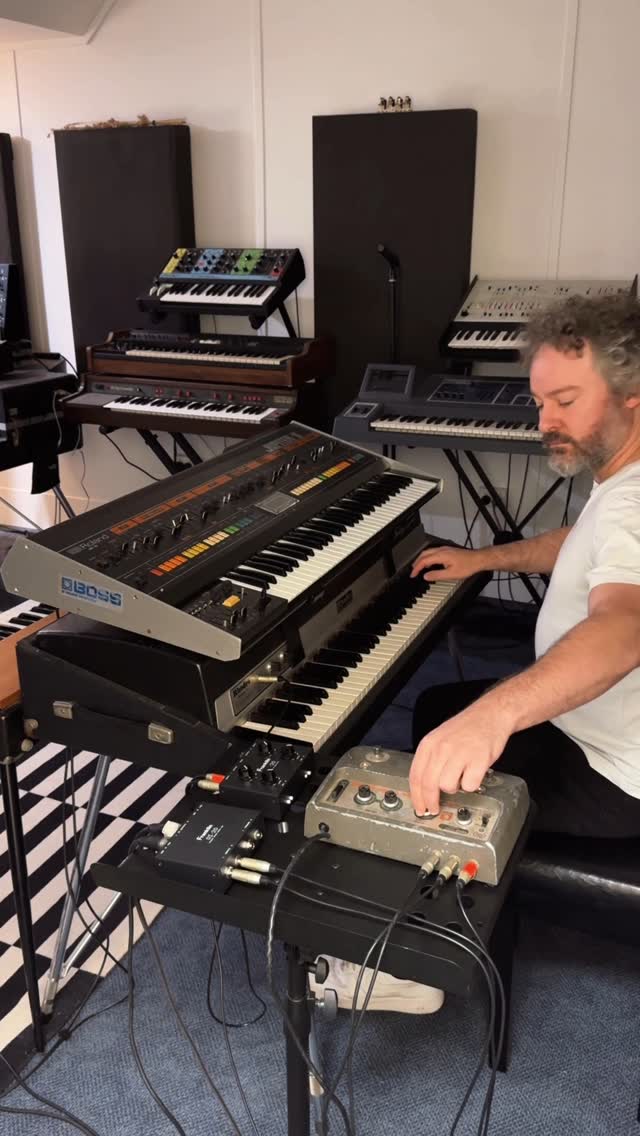

In The Wild

Break out of the box

Connect your interface outputs to the RA-20. The balanced input converts your DAW audio to the perfect level and impedance for pedals and effects.

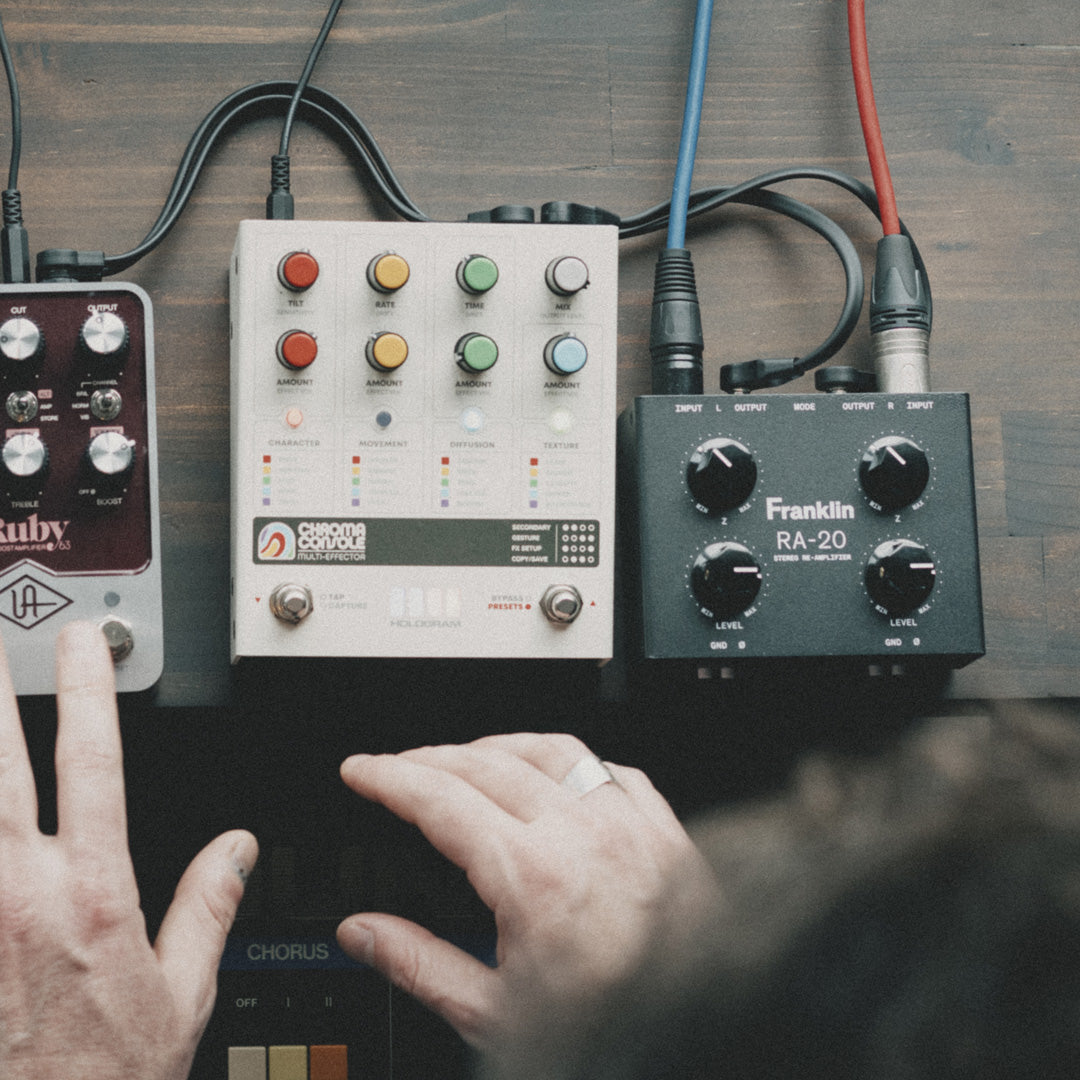

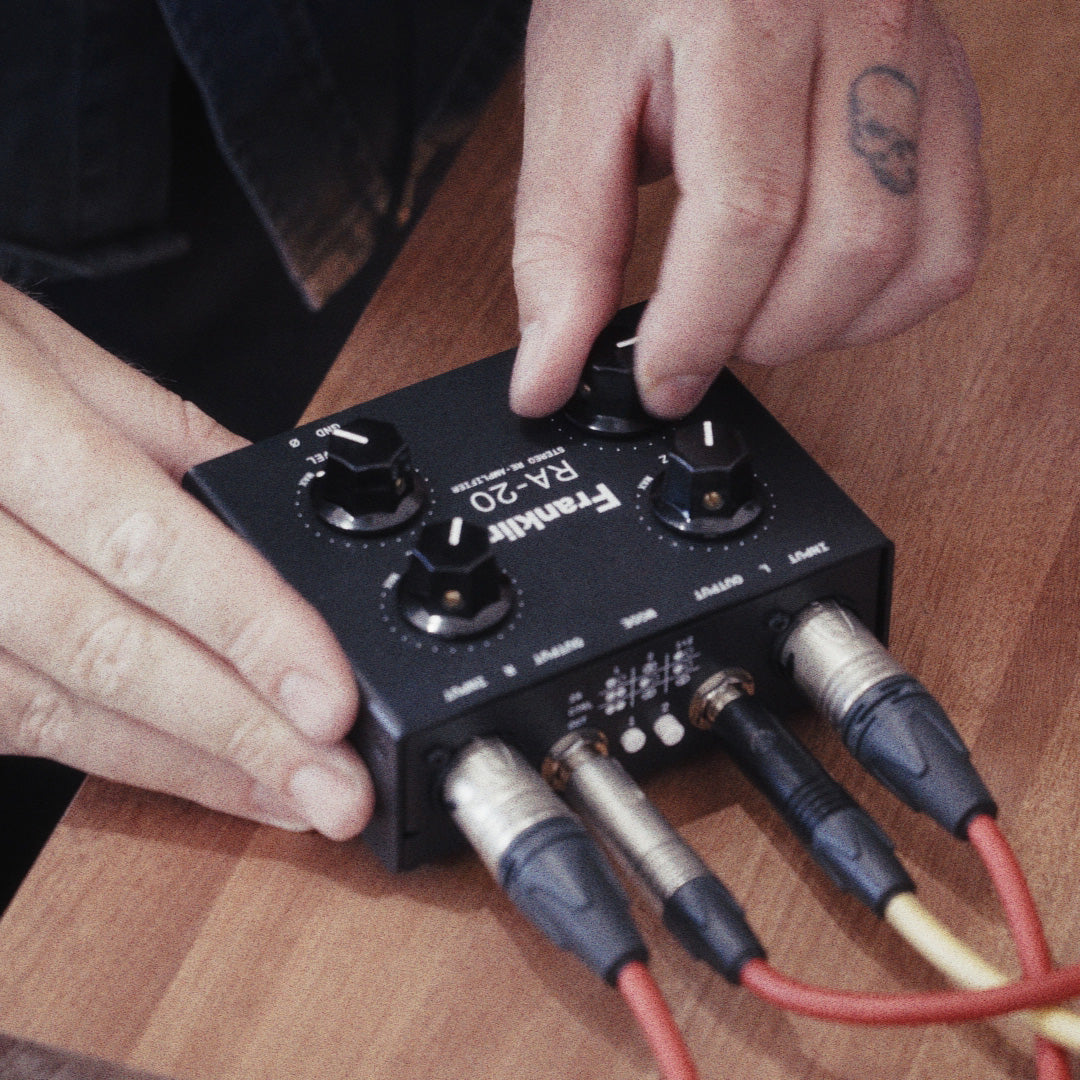

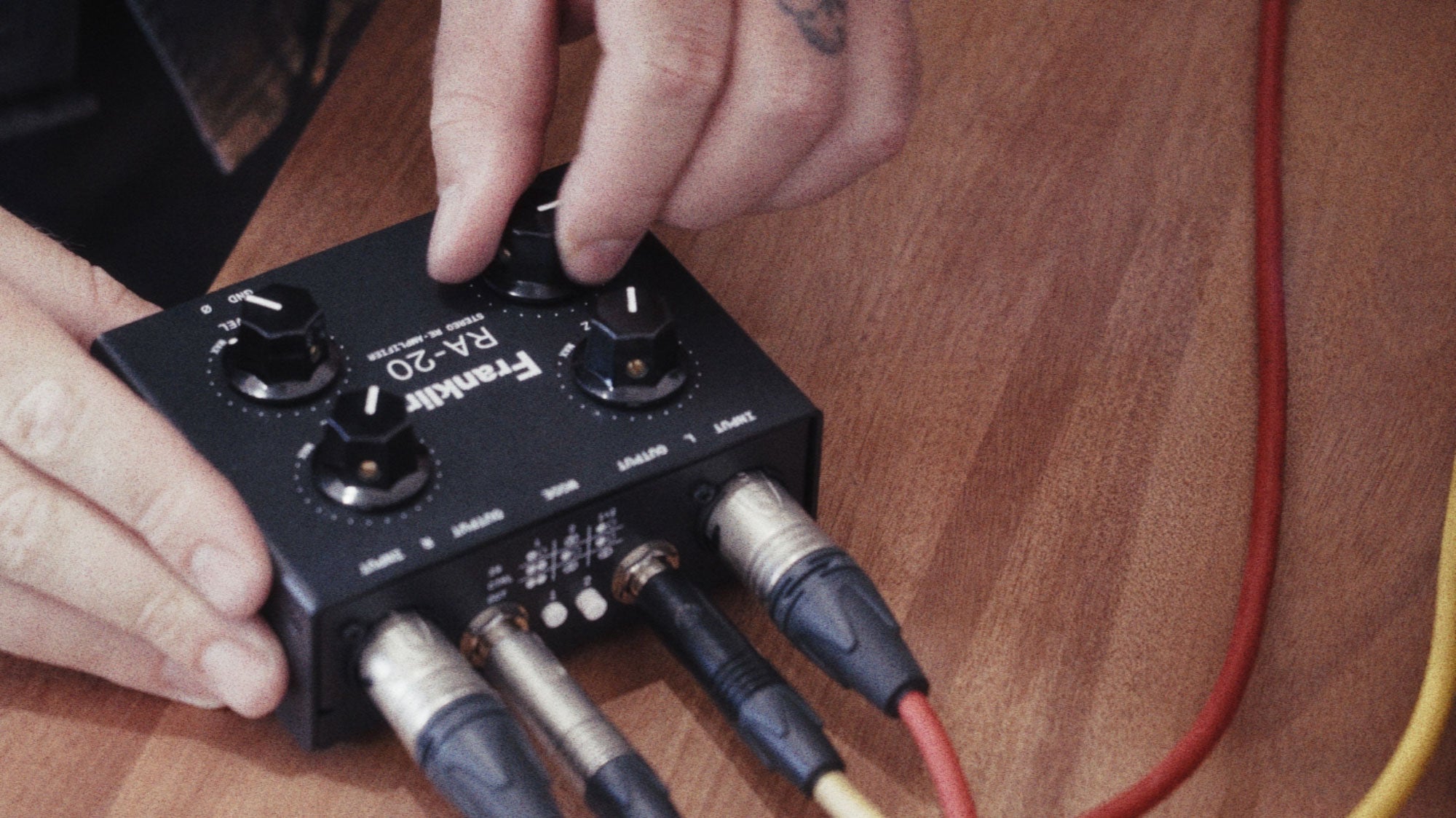

Get hands on

Use the instrument level outputs to run your DAW audio through your pedals. Dial in the drive and response to taste with adjustable output levels and impedance controls.

Capture Your Way

Send the pedal audio to your preferred destination (DI, interface, amp) to monitor while your experiment and capture your takes.

Our Signature Routing Modes

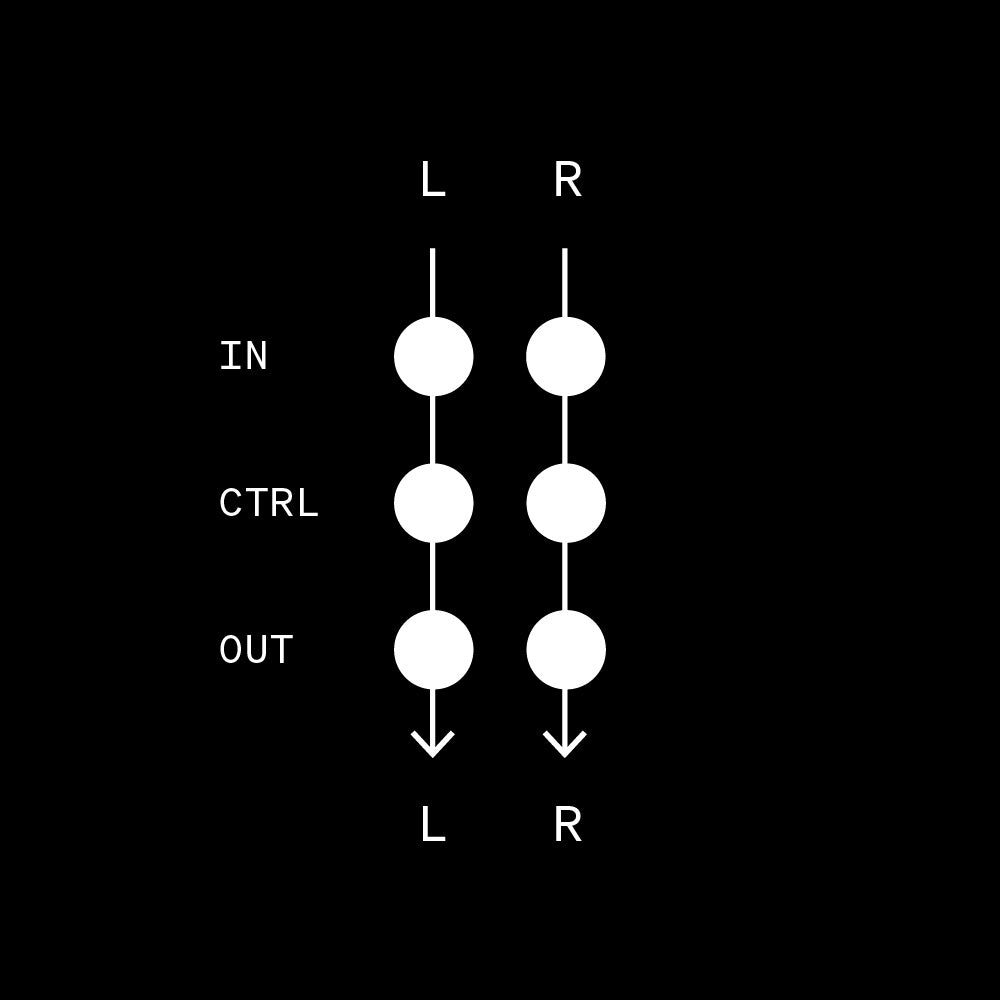

Mode 1: Dual Mono

Both sides work independently like two separate RA-10 units. Run two different re-amp chains simultaneously with unique settings for each.

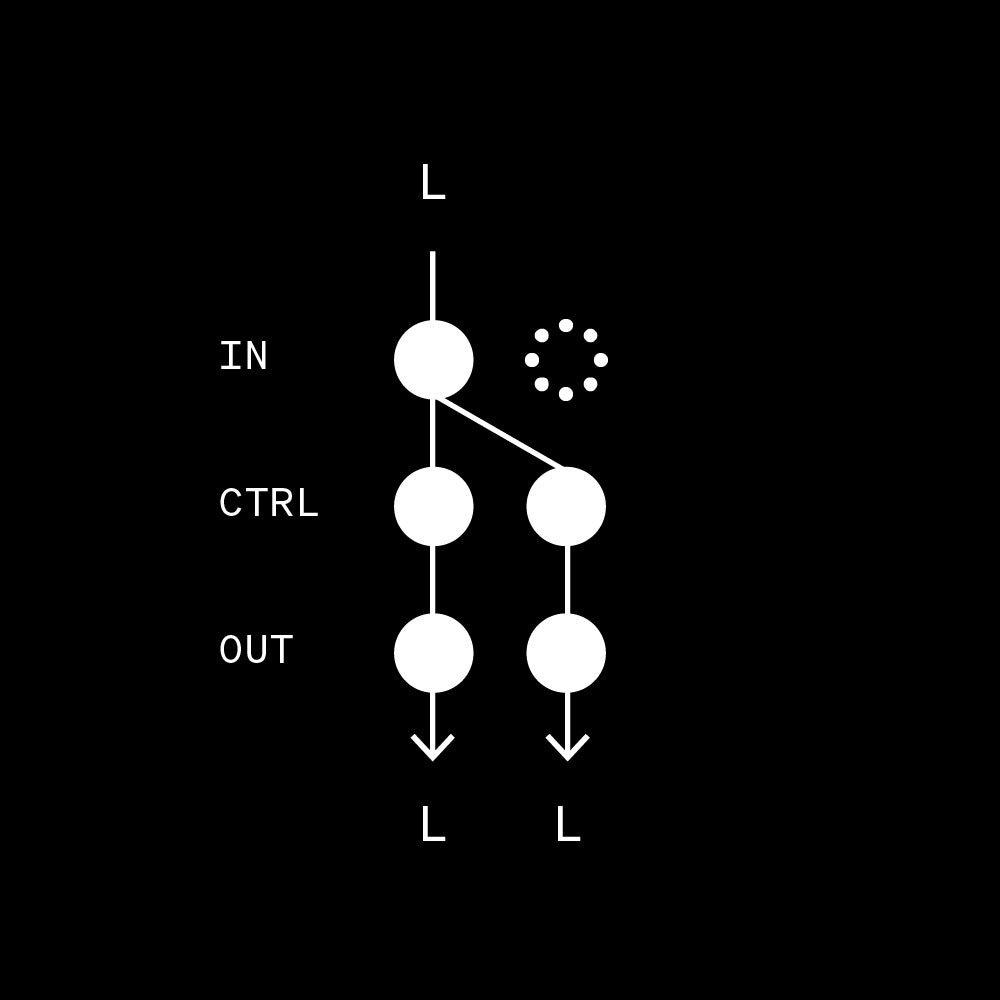

Mode 2: Mono > Dual Mono

Takes one mono input and sends it to both outputs with independent level and impedance controls per side. Perfect for processing one source through two different pedal chains.

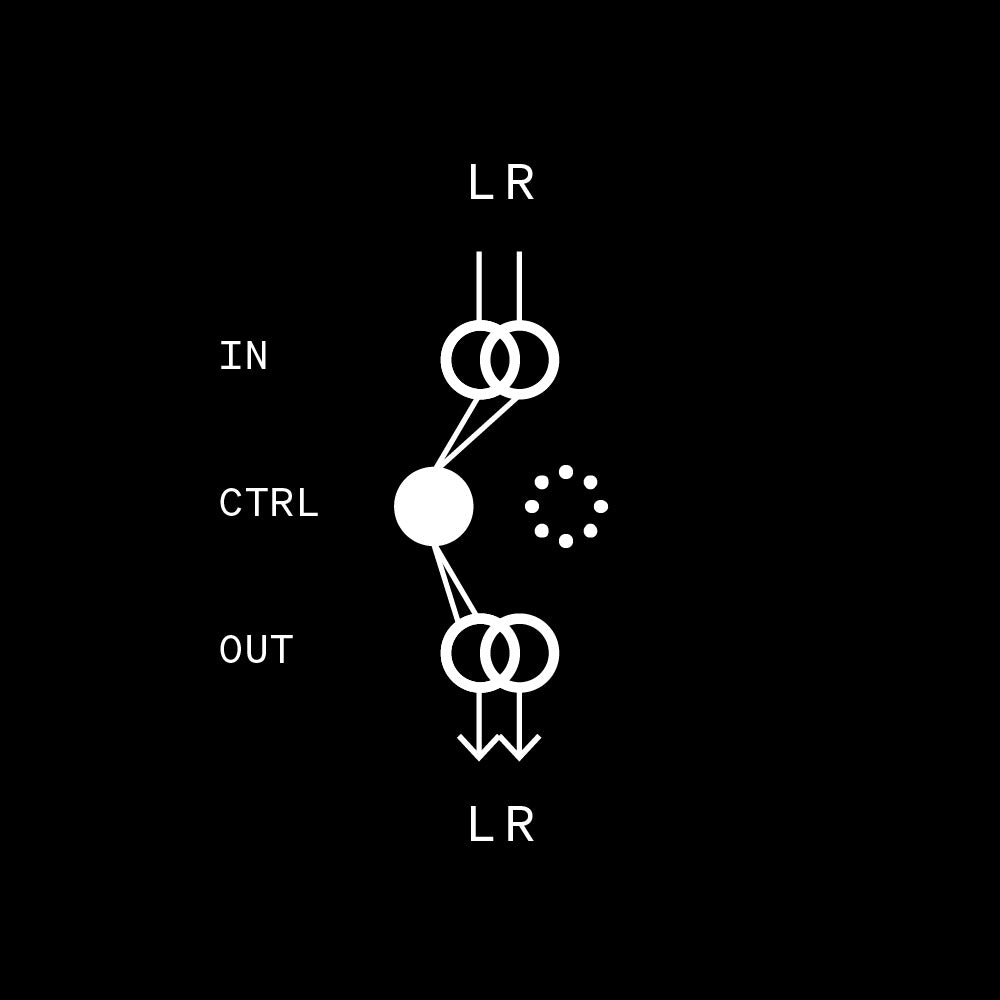

Mode 3: True Stereo

Stereo input with linked controls—both channels controlled from the left side only. Re-amp stereo sources while maintaining your stereo image without matching settings manually.

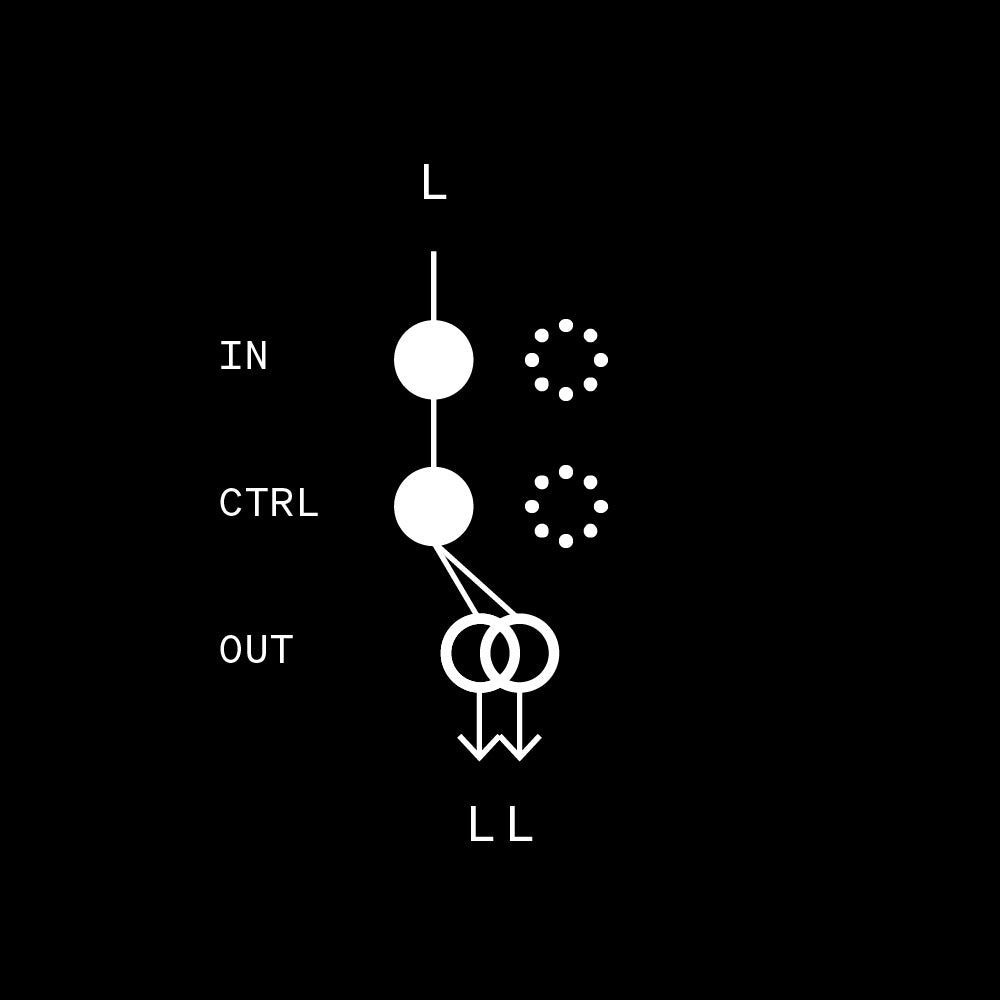

Mode 4: Mono > Stereo

One mono input feeds both outputs with linked controls. Similar to Mode 2 but with unified level and impedance settings from the left side.

Super Useful

We believe great gear should be easy to use—no technical barriers, no learning curve, just music-making. We've thought deeply about every aspect of the RA-20's design so that you can focus on creating, no matter your experience level.

User-friendly design

Simple controls and clear indicators means less time learning and more time creating.

Multi-functional

Works as two standalone re-amp boxes or one stereo unit, with four different routing configurations.

100% analogue

We make our gear using analogue circuitry with zero digital components—built for reliability, longevity, and easy repair if you ever need it.

No power needed

The SS-6 has a fully passive design, so you don't have to worry about freeing up an outlet.

Built like a tank

...with heavy duty 1.5mm folded steel enclosure. Your studio deserves gear that won't let you down.

Specs & Features

Inputs

2 x Mono Neutrik™ Balanced Combo Connector

Outputs

2 x TS 1/4" Neutrik™ Instrument Jacks

Input Modes

Mono, Stereo

Output Modes

Stereo, Dual Mono

Circuitry

Passive with custom-wound Franklin Audio transformers

Construction

Heavy duty 1.5mm folded steel enclosure

Origin

Designed and hand made in Sydney, Australia

Technical Specs

Frequency response

10Hz-30kHz +/-1dB
Title

Signal to noise ratio

>90dB
Title

THD

<0.001%
Title

Re-amp circuit attenuation

12dB
Title

Weight

0.65kg
Title

Dimensions

L: 116mm D: 95mm H: 63mm

Manual

RA-20 User Guide v1.1

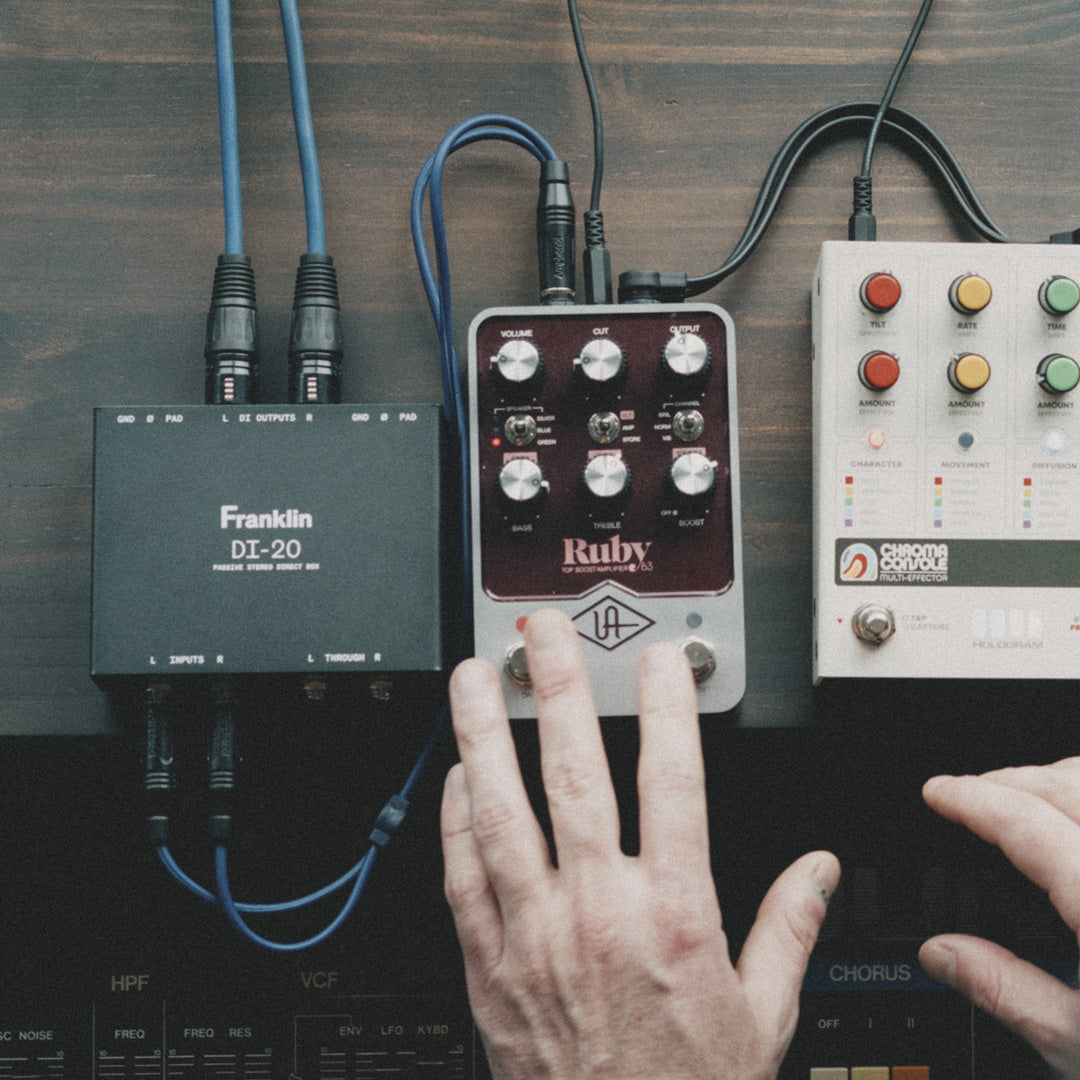

Complete your re-amping chain:

DI-10 Passive Direct Box
DI-10 Passive Direct Box
DI-10 Passive Direct Box
DI-10 Passive Direct Box

DI-10 Passive Direct Box

We wanted to turn the humble passive DI into an elegant and discrete unit that would slot in anywhere and look good with everything. Transformer balanced for super high headroom, the DI-10 will take anything you throw at it.

DI-20 Stereo Passive Direct Box
DI-20 Stereo Passive Direct Box
DI-20 Stereo Passive Direct Box
DI-20 Stereo Passive Direct Box

DI-20 Stereo Passive Direct Box

Capture your re-amped audio with our workhorse stereo DI. Made to our dream specs, and designed to be a quiet companion to your set-up, the DI-20 perfectly completes your stereo re-amp chain.
×
