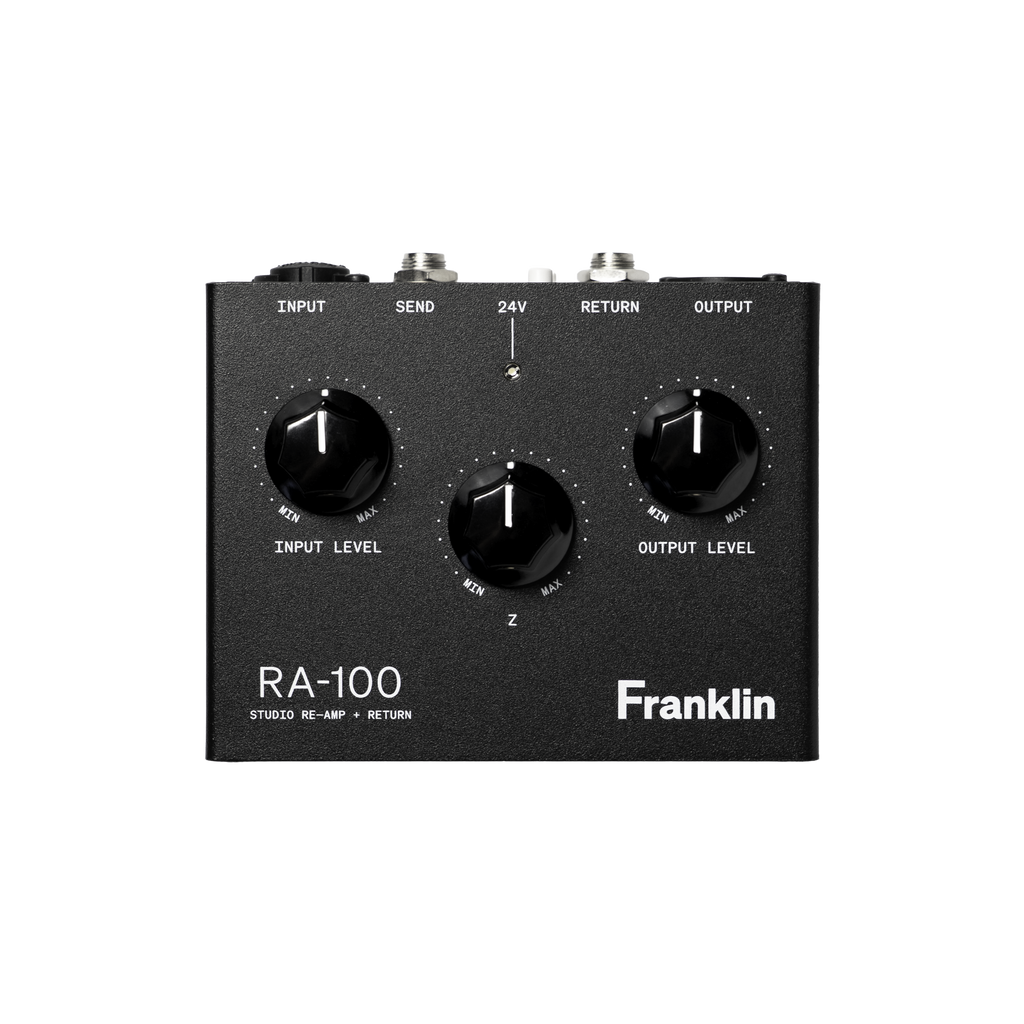

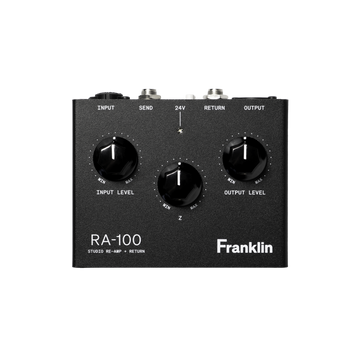

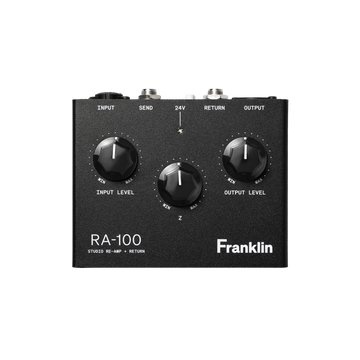

RA-100 Studio Re-Amp and Return

485 AUD
🇬🇧 Want to shop local instead? Buy through Make Noise Pro Audio You can now grab Franklin Audio gear in UK! Skip the international shipping and let our mates at Make Noise Pro take care of you.
Take me to the MNPA shop

Turn your pedals into studio effects

Send drums through that vintage fuzz, warm up synth tracks with your favourite chorus, or get hands-on with vocal delays using your trusty tape echo. The RA-100 handles both the send and return in one box—route any DAW track through your pedalboard and bring it back with transformer-balanced I/O at both ends. With ultra-forgiving levels, multi-function routing, and a built-in return path that saves you a DI box, we've built the simplest all-in-one solution to unlock your hidden outboard collection.

Send and return in one unit

Use your pedals like IRL plugins

Transformer balanced for massive headroom

Desktop friendly

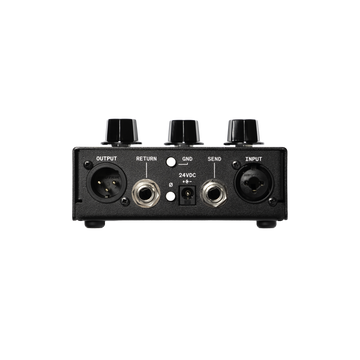

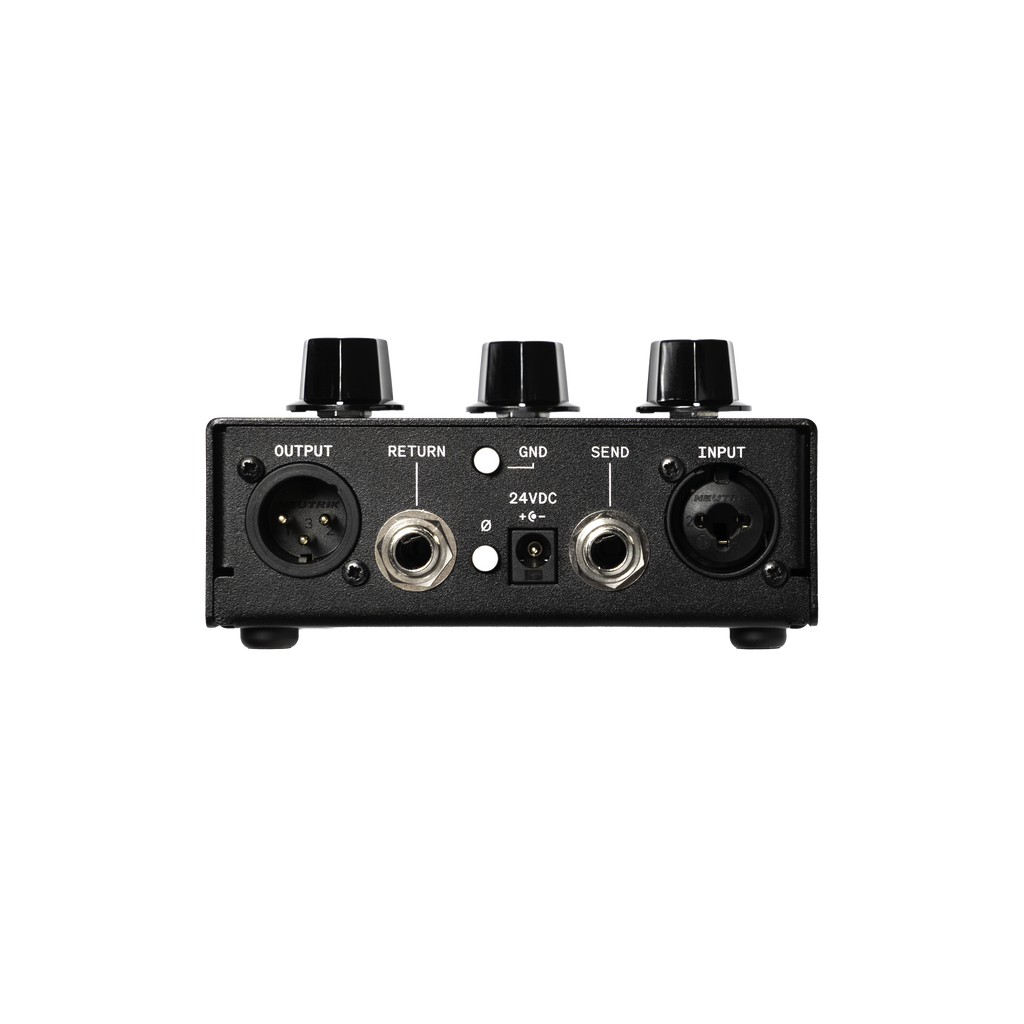

Connections

Line Level Input
XLR/TRS to receive any balanced mono audio from your audio interface or mixer.

Instrument Level Send/Return
Mono TS (i.e. guitar lead) jacks to send your re-amped audio to your pedal chain and back again.

Line Level Output
Balanced XLR output for sending your processed audio back to your interface or mixer.

10-Year Warranty

We don't make anything that wouldn't be proud to have in our own studios, and we back our products 100%. That's why the RA-100 comes with a 10 year warranty.

Manual

RA-100 User Guide v1.1

More details

Break out of the box

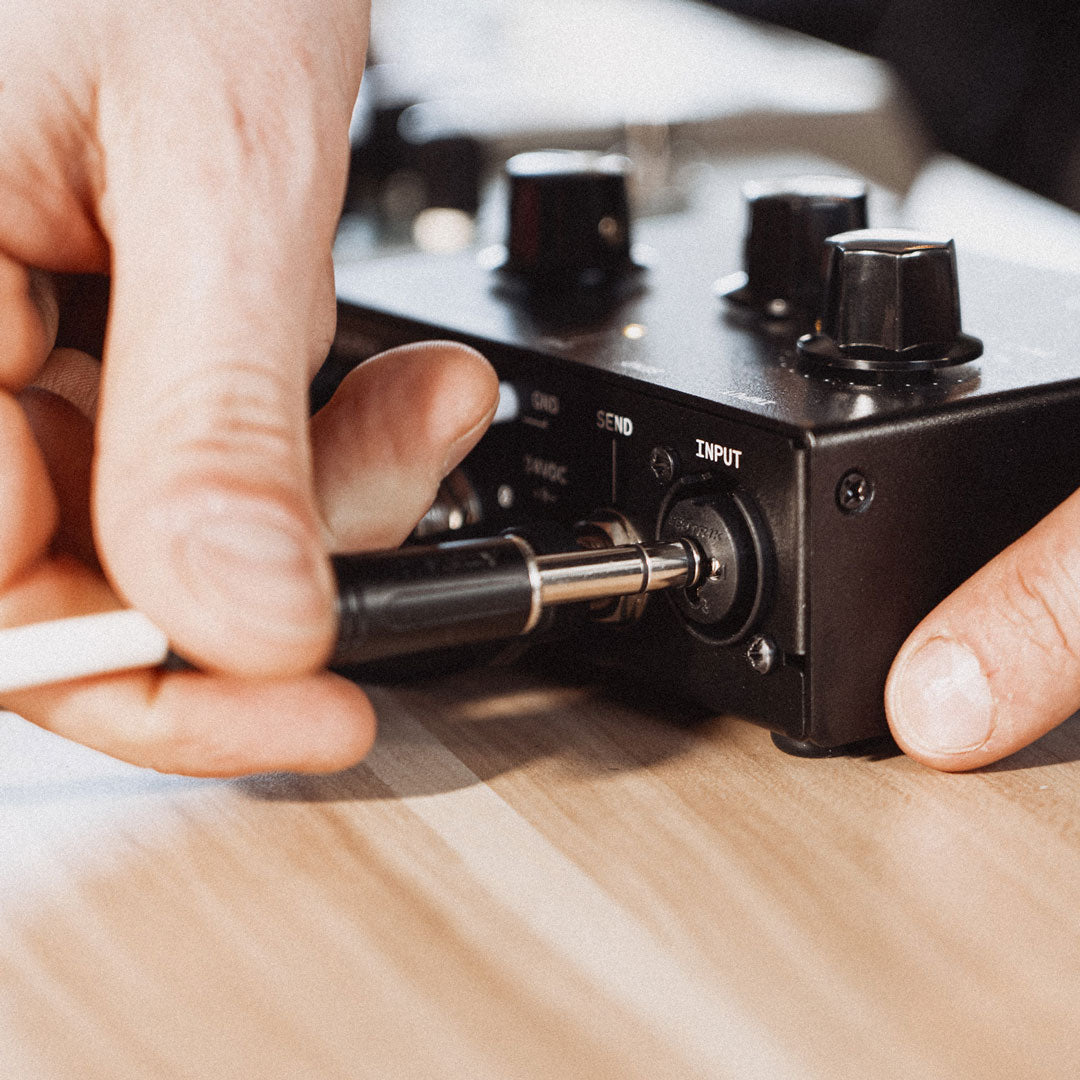

Connect your interface output to the RA-100. The balanced input converts your DAW audio to the perfect level and impedance for pedals and effects.

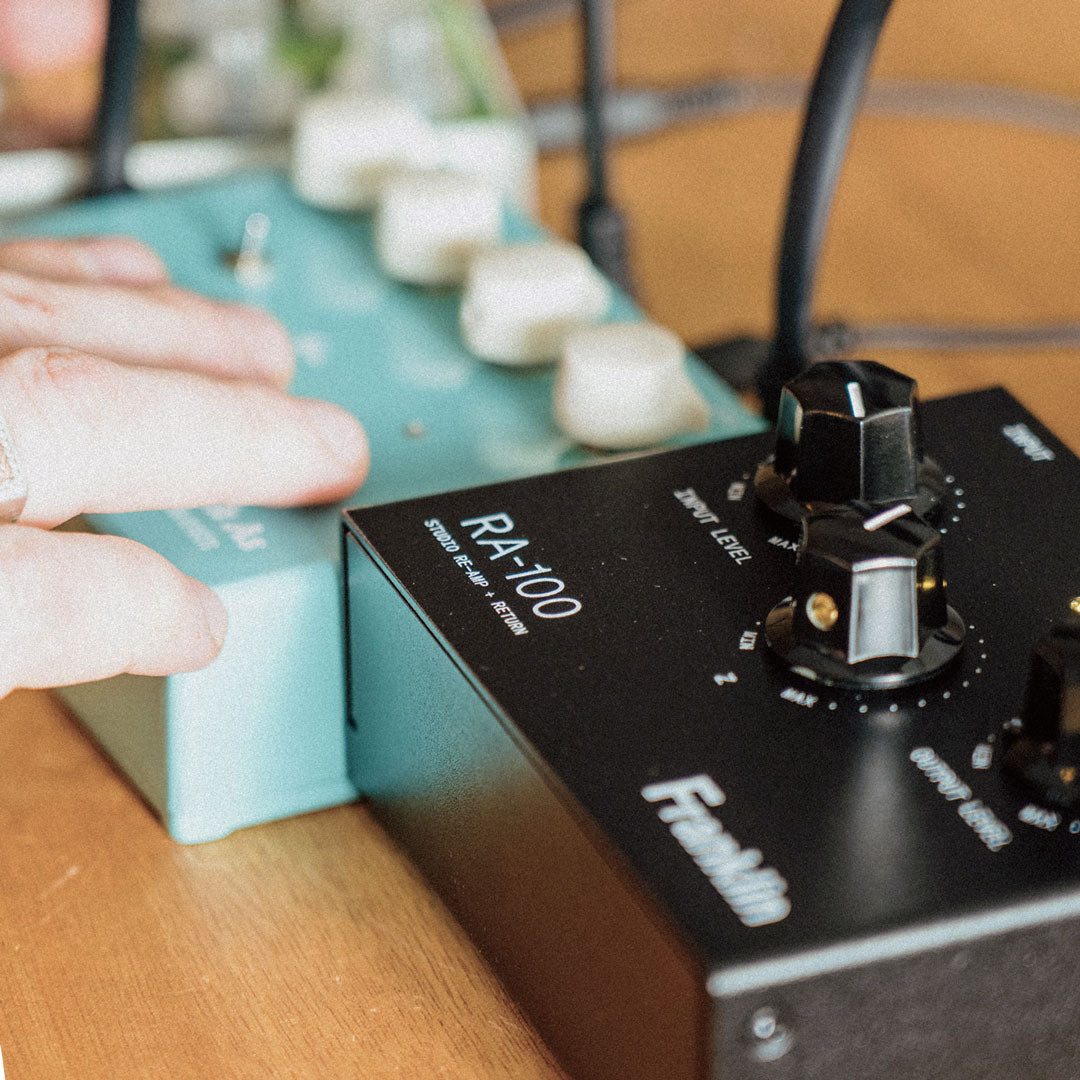

Get hands on

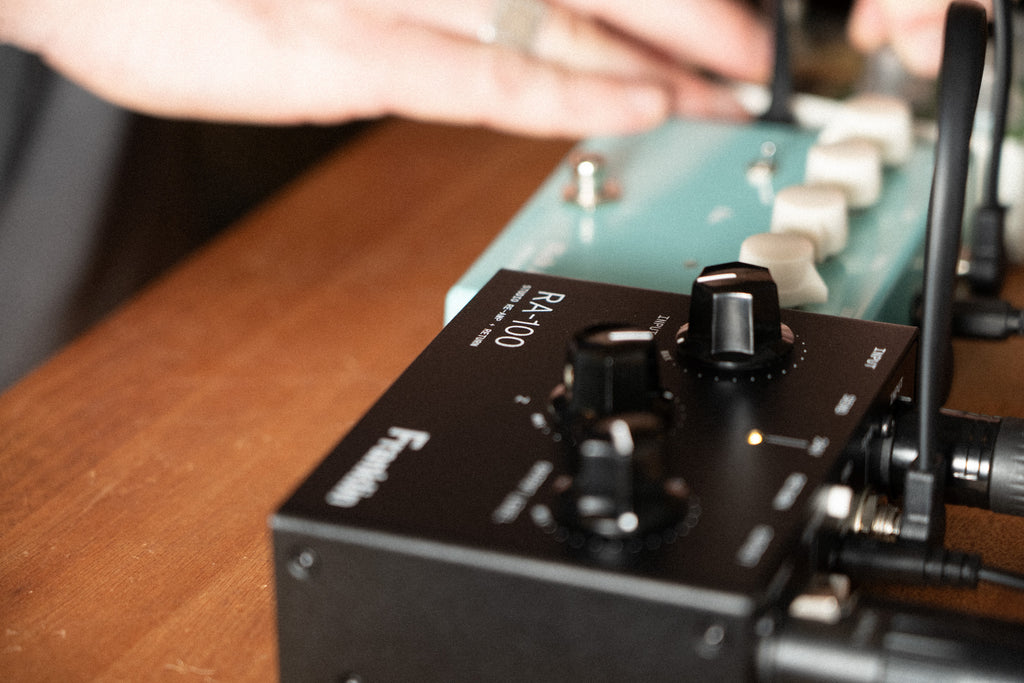

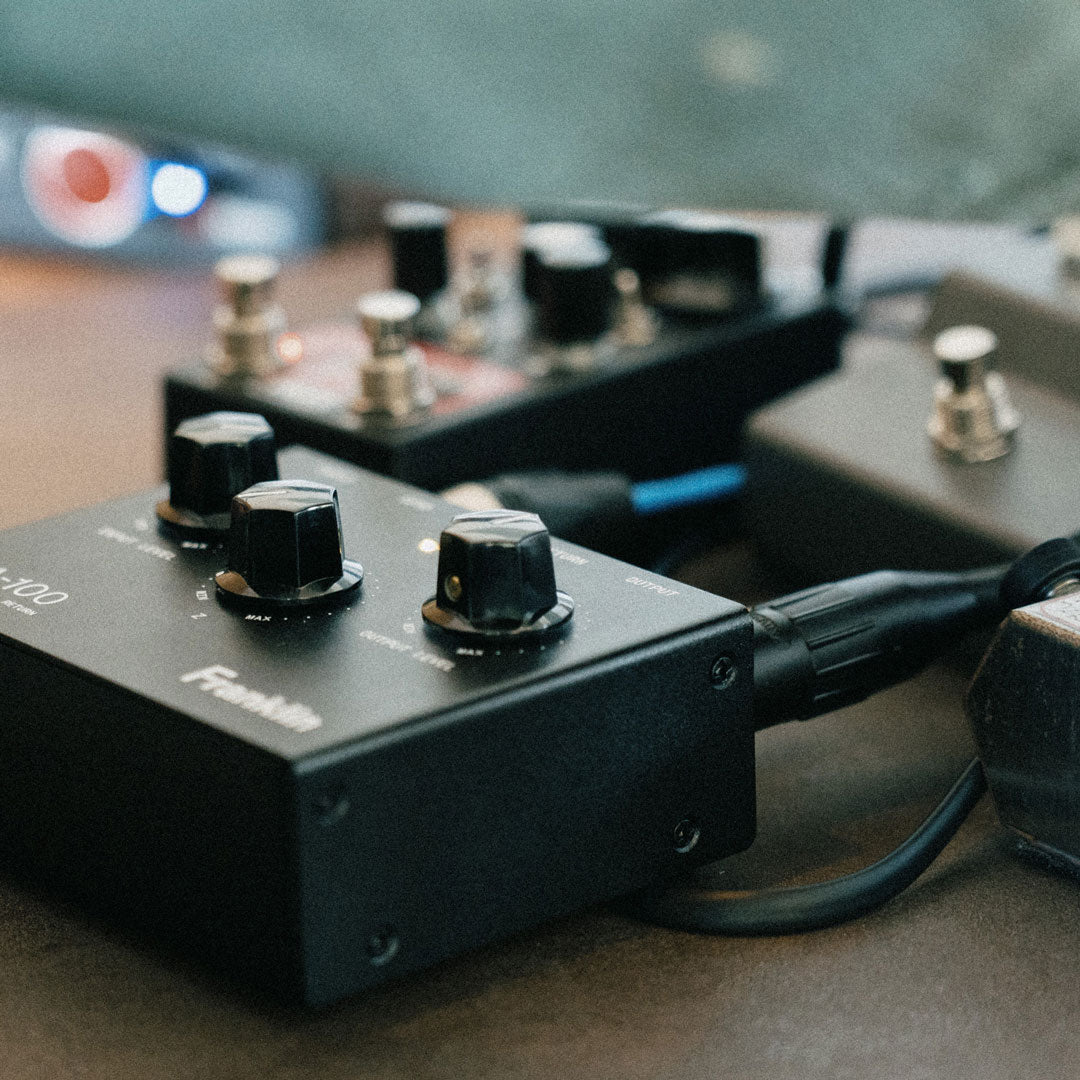

Use the Send and Return I/O to run your DAW audio through your pedals. Dial in the drive and response to taste with adjustable output level and impedance controls.

Bring it home

The balanced XLR output returns clean, studio-grade signal straight back to your interface—no extra DI needed.

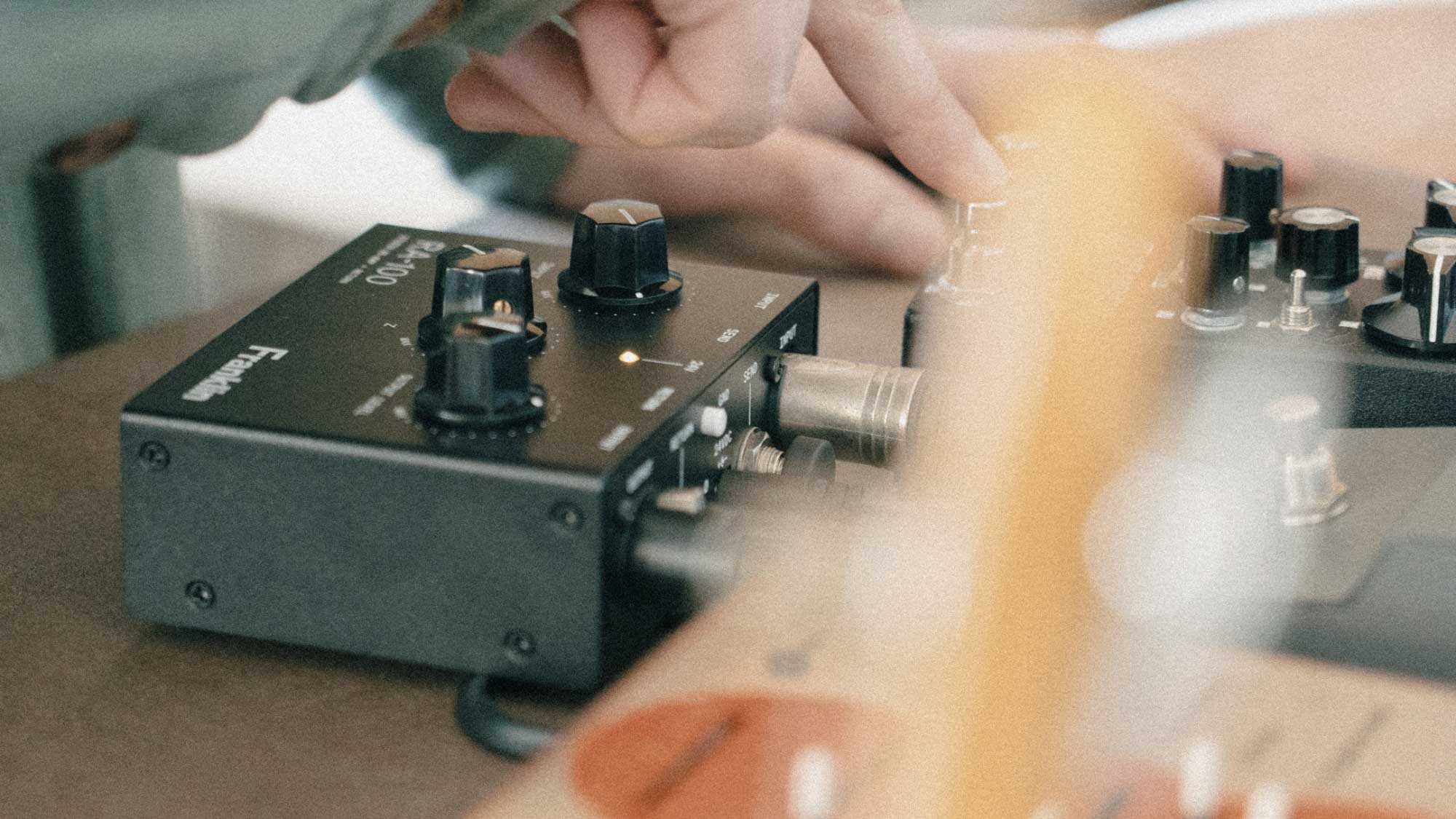

Super Useful

We believe great gear should be easy to use—no technical barriers, no learning curve, just music-making. We've thought deeply about every aspect of the RA-100's design so that you can focus on creating, no matter your experience level.

User-friendly design

Simple controls and clear indicators means less time learning and more time creating.

One-stop-shop integration

Keep your favourite outboard effects patched in and ready to use from a single, discreet hub.

Multi-functional

Works as a standalone re-amp box and as a transformer-balanced preamp for recording electric bass and guitar.

100% analogue

We make our gear using analogue circuitry with zero digital components—built for reliability, longevity, and easy repair if you ever need it.

Built like a tank

...with heavy duty 1.5mm folded steel enclosure. Your studio deserves gear that won't let you down.
🇬🇧 Want to shop local instead? Buy through Make Noise Pro Audio You can now grab Franklin Audio gear in UK! Skip the international shipping and let our mates at Make Noise Pro take care of you.
Take me to the MNPA shop
Worried about tariffs? Don't be! Our products ship from our warehouse in Philadelphia, so your order is already in the country with all duties paid. That means no surprises or random charges after you buy. We've taken care of it.
🇬🇧 Want to shop local instead? Buy through Make Noise Pro Audio You can now grab Franklin Audio gear in UK! Skip the international shipping and let our mates at Make Noise Pro take care of you.
Take me to the MNPA shop
Worried about tariffs? Don't be! Our products ship from our warehouse in Philadelphia, so your order is already in the country with all duties paid. That means no surprises or random charges after you buy. We've taken care of it.
🇬🇧 Want to shop local instead? Buy through Make Noise Pro Audio You can now grab Franklin Audio gear in UK! Skip the international shipping and let our mates at Make Noise Pro take care of you.
Take me to the MNPA shop
Worried about tariffs? Don't be! Our products ship from our warehouse in Philadelphia, so your order is already in the country with all duties paid. That means no surprises or random charges after you buy. We've taken care of it.

Specs & Features

Inputs

[Re-Amp] 1 x Transformer balanced line input on Mono Neutrik™ Balanced Combo Connector

[Return] 1 x High impedance instrument input on Neutrik™ TS 1/4" jack

Outputs

[Re-amp] 1 x Instrument level output on Neutrik™ TS 1/4" jack (send)

[Return] 1 x Transformer balanced line output on mono Neutrik™ XLR

Circuitry

[Re-amp] Passive, transformer balanced

[Return] Active high gain, transformer balanced preamp

Construction

Heavy duty 1.5mm folded steel enclosure

Origin

Designed and hand made in Sydney, Australia

Power Supply

Provided 24V DC power supply (works worldwide)

Technical Specs

Weight

0.65kg
Title

Dimensions

L: 116mm D: 95mm H: 63mm

Re-Amp

Return
Title

Power

Passive (no power required)

24V DC centre negative 2.1mm
Title

Input

Balanced XLR or TRS

Unbalanced 6.35 (¼”) TS jack
Title

Output

Unbalanced 6.35 (¼”) TS jack

Balanced XLR
Title

Gain

-∞ to -12dB

0-26dB
Title

Input Impedance

10K

1MΩ
Title

Output Impedance

600Ω

600Ω
Title

SNR

< 96dB

85dB
Title

THD at 0dBu

< -0.001%

0.0014%
Title

Frequency Response

20Hz-30kHz +/-0.3dB

20Hz-30kHz +2dB

Manual

RA-100 User Guide v1.1

More workflow tools:

MS-3 Studio Monitor Switcher
MS-3 Studio Monitor Switcher
MS-3 Studio Monitor Switcher
MS-3 Studio Monitor Switcher
MS-3 Studio Monitor Switcher

MS-3 Studio Monitor Switcher

The simplest, sturdiest and most satisfying way to add extra monitors to your set-up. Flick between your speakers with the satisfying, tactile buttons, or run multiple pairs in parallel—all from a tidy desktop box.

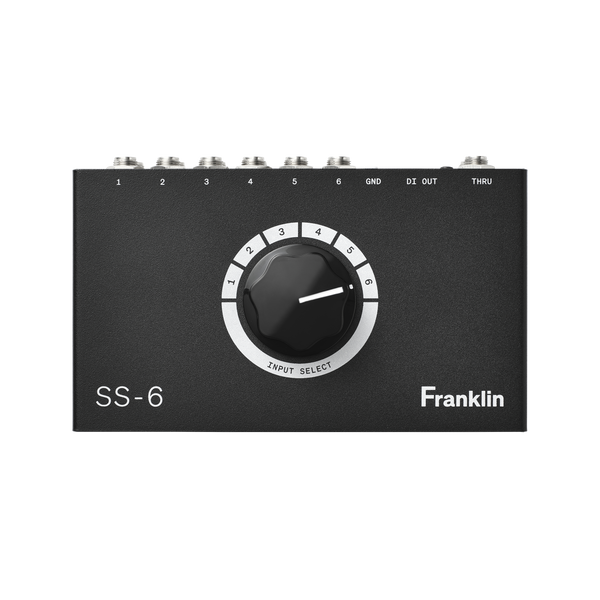

SS-6 MKII Switchable Input Stereo DI
