DI-10 Passive Direct Box
$230.00 AUD
Minimalism meets strength: The platonic DI.

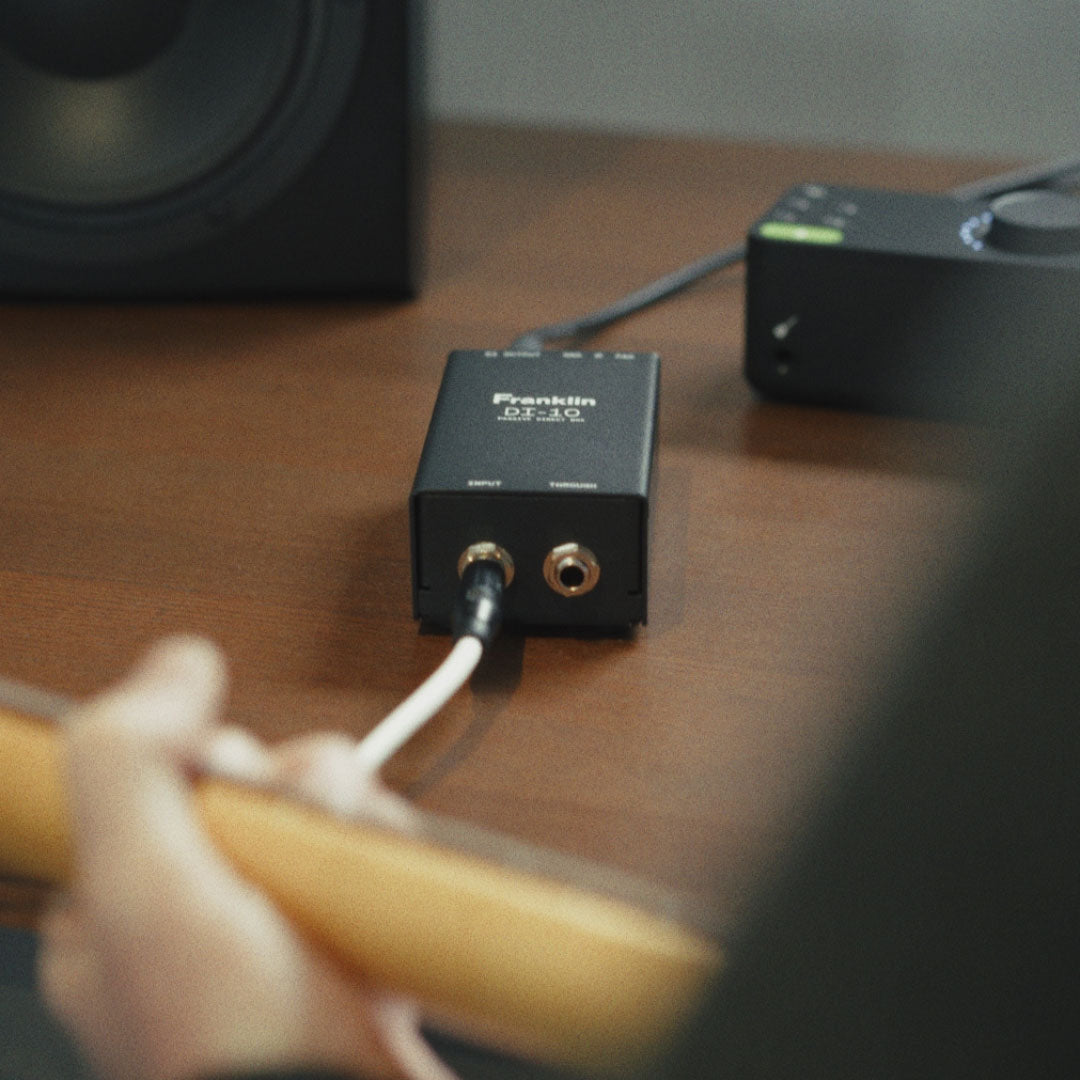

The DI-10 is a super robust, low-profile and transformer-balanced passive DI (direct) box. It's the simplest and best way to plug guitars, basses and keyboard instruments straight into mic preamps for direct recording or live sound.
Key features
Ultra-low noise floor
Low profile design
Heavy duty construction
Made in Australia
Introducing our fully passive, custom transformer-balanced DI, built for a lifetime of use in the studio and on stage.
The minimal, low profile enclosure has been carefully designed with function and aesthetics in mind to sit discretely alongside your favourite gear.
Our custom-wound transformers are designed with a high input impedance that mimics that of classic guitar amps, giving a clear, full tone and a super responsive playing feel.
The industrial folded steel chassis provides optimal noise shielding and durability for a lifetime of use in studio and on stage.
Specs & features
Inputs

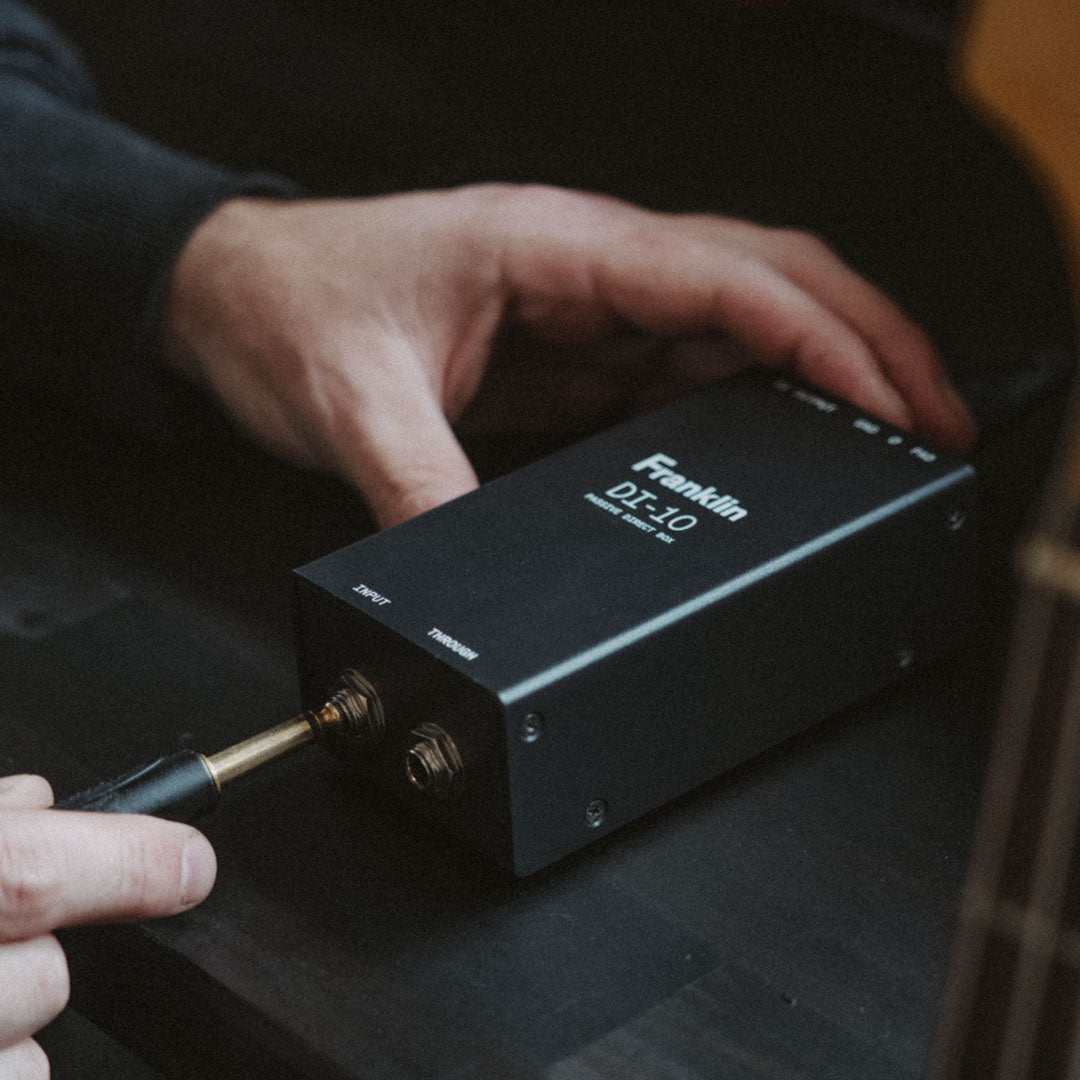

1 x TS 1/4" Neutrik™ Instrument Jack
Outputs

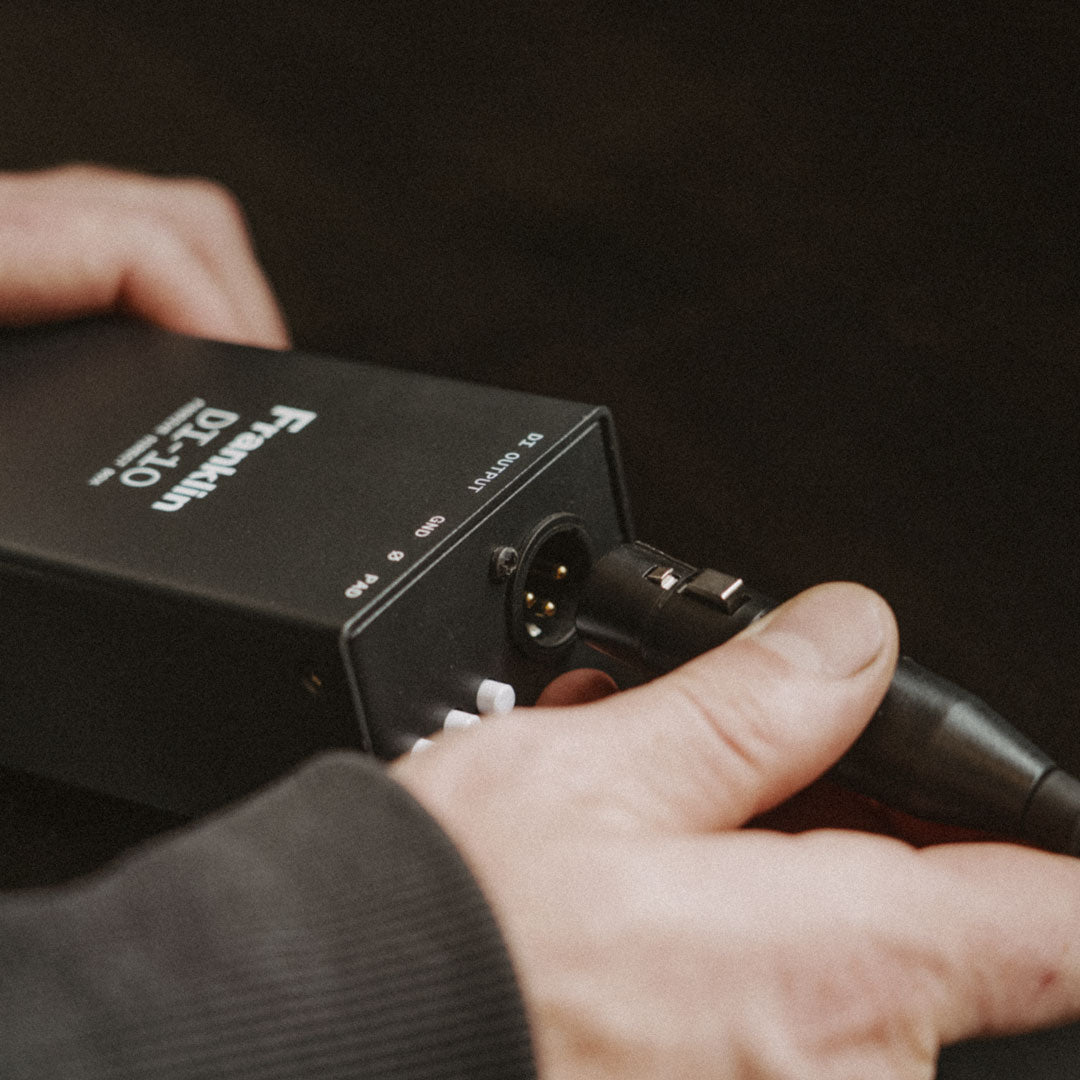

1 x Mono Neutrik™ Balanced XLR Connector + 1 x TS 1/4" Neutrik™ Through Jack
Circuitry
Passive with custom-wound Franklin Audio transformers
Construction
Heavy duty folded steel enclosure
Origin
Designed and hand made in Sydney, Australia
Weight
0.236kg | 0.52lb
Dimension
Metric: L 127mm / W 65mm / H 45mm | Imperial: L 5" / W 2.56" / H 1.77"
