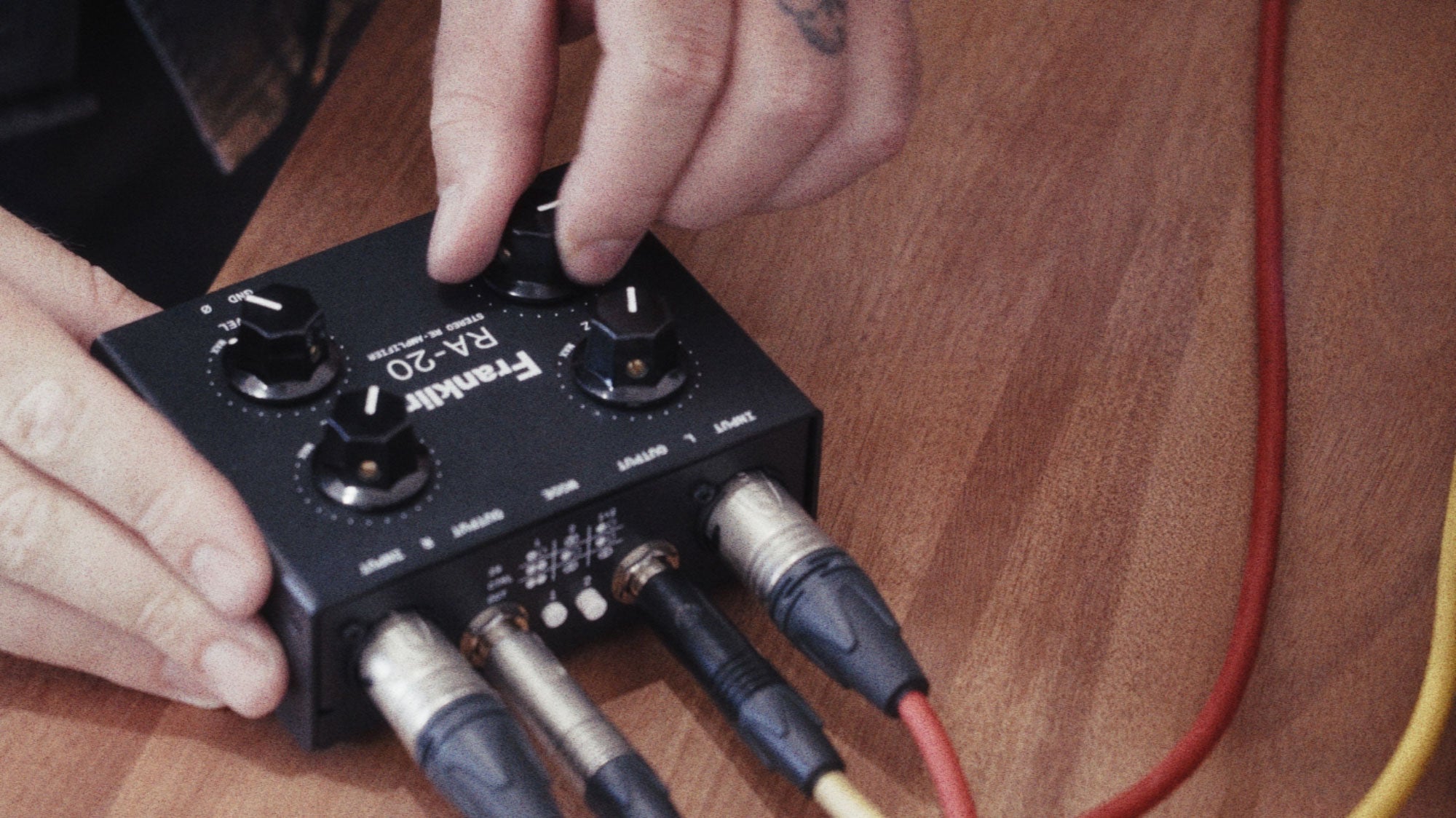

RA-20 Stereo Re-Amplifier

490 AUD

The best re-amp box ever.
Now in stereo.

Our signature variable impedance, high headroom passive re-amplifier, now in stereo with 4 stereo control modes.

The RA-20 Dual Re-Amplifier gives you unmatched control over any combination of mono and stereo inputs and outputs with four unique configuration modes. Whether you’re sending guitar tracks through vintage pedals, routing a stereo synth into dual amps, or blending signals in creative ways, this little powerhouse does it all.

Compact, rugged, and designed for hands-on creators, the RA-20 opens up endless creative options. Shape new textures, add depth to your mixes, or just experiment with sound in ways that feel totally fresh. Let the RA-20 take your studio sessions to a whole new level, helping you bring every track to life with ease and personality.

Key features
Simplified Workflow
Studio-Grade Audio
Heavy Duty Construction
Made In Australia
More details
Flat Rate Shipping We ship globally with one clear, upfront rate.
30-Day Returns Not the right fit? Send it back, no questions asked.
2-Year Warranty Studio-grade reliability. Covered by people who actually build the gear.
Local Duties Not Included We don’t charge VAT—your country might. See our policy for details.
Ships from Sydney Fast delivery direct from our local workshop.
Flat Rate Shipping One low rate on all Australian orders—no guessing.
30-Day Returns Not the right fit? Send it back, no questions asked.
2-Year Warranty Studio-grade reliability. Covered by people who actually build the gear.
Ships from the USA In-stock and ready to go—orders ship fast from our Philadelphia warehouse.
Flat Rate Shipping One low rate on all US orders—no guessing.
30-Day Returns Not the right fit? Send it back, no questions asked.
2-Year Warranty Studio-grade reliability. Covered by people who actually build the gear.

The RA-20 is a transformer balanced, passive re-amplifier two inputs and outputs, controllable via four unique mono/stereo configuration modes.

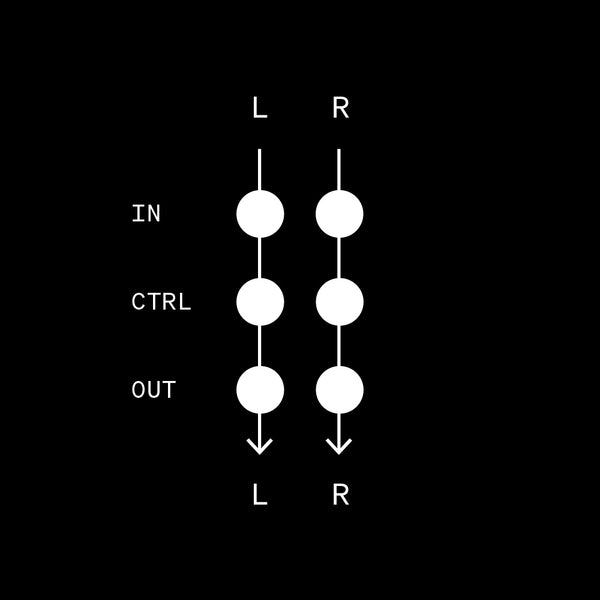

Mode 1

Dual Mono



With both Mode buttons off, the RA-20 behaves like two separate RA-10 units by default, with each side completely independent of the other.

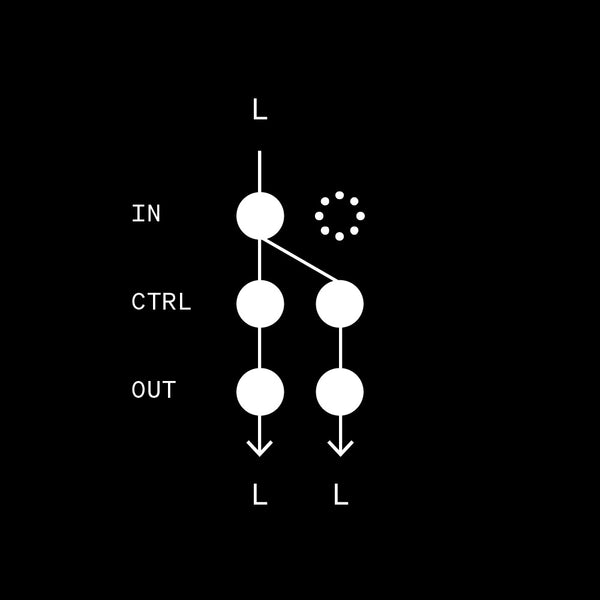

Mode 2

Mono to Dual Mono



With just the first Mode button on, the Left input will be duplicated across both sides, but with independent controls. This allows you to take a mono source and re-amp it to two different destinations, each with their own level and impedance settings.

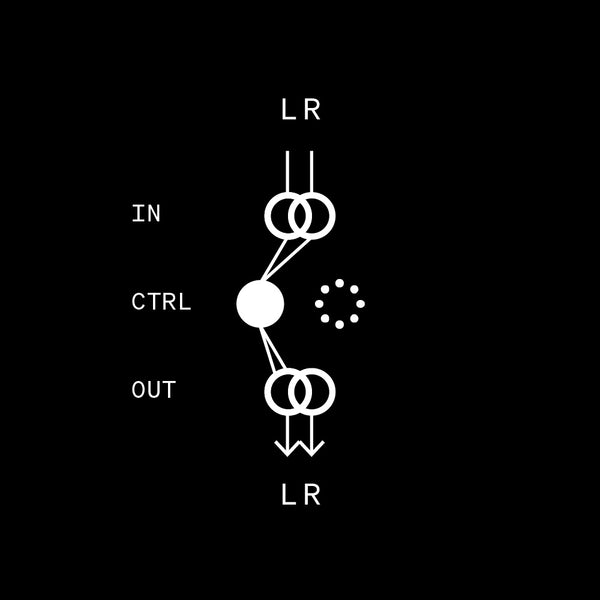

Mode 3

True Stereo



With just the second Mode button on, the RA-20 will treat the two inputs as a stereo pair that a both controlled with the left side controls only. This means you can re-amp in true stereo without having to painstakingly match the settings on both sides.

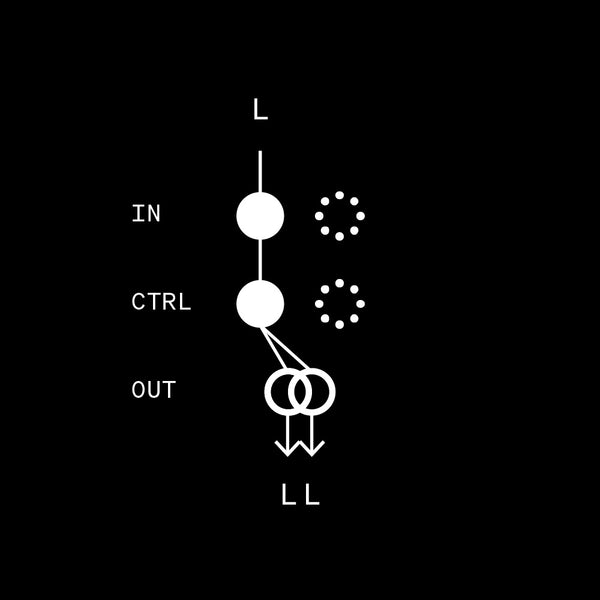

Mode 4

Mono to Stereo



With both Mode buttons on, the RA-20 uses the left input as the source for both channels and links the controls. This is similar to Mode 2, but the level and impedance for both channels are set using the left hand controls only.

Specs & Features

Inputs

2 x Mono Neutrik™ Balanced Combo Connector

Outputs

2 x TS 1/4" Neutrik™ Instrument Jacks

Input Modes

Mono, Stereo

Output Modes

Stereo, Dual Mono

Circuitry

Passive with custom-wound Franklin Audio transformers

Construction

Heavy duty 1.5mm folded steel enclosure

Origin

Designed and hand made in Sydney, Australia

Technical Specs

Frequency response

10Hz-30kHz +/-1dB
Title

Signal to noise ratio

>90dB
Title

THD

<0.001%
Title

Re-amp circuit attenuation

12dB
Title

Weight

0.65kg
Title

Dimensions

L: 116mm D: 95mm H: 63mm

Manual

RA-20 User Guide v1.0
×
